RS232 Board
Establish RS232 communication with devices powered from 3V to 5.5V
- IC Chip: SP3232E
- Operating Voltage: DC 3.0~5.5 V
- Length (mm): 45
- Width (mm): 25
- Height (mm): 2
- Weight (gm): 18
Features:
- SP3232 (RS232)
- DB9 connector
- UART port

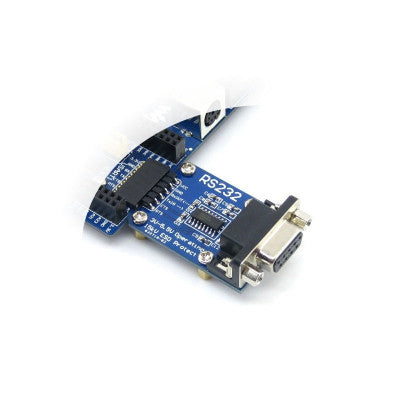

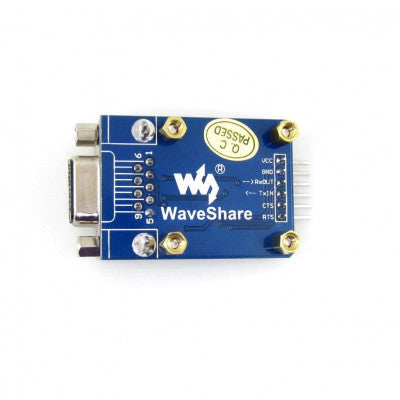

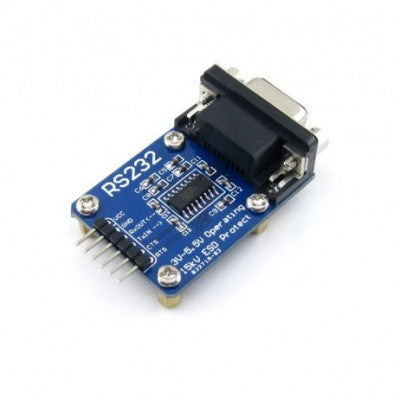

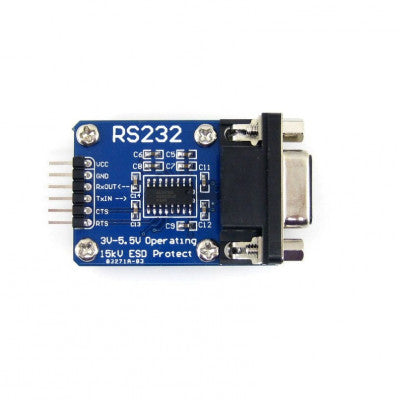

The RS232 Board is designed for establishing RS232 communication with devices powered from 3V to 5.5V. It contains the SP3232 (RS-232 Transceiver) and a DB9 connector for connecting a PC and MCU. This board features ESD protection and supports hardware flow control. The SP3222E/3232E series is ideal for portable or handheld applications like notebook or palmtop computers. It has a high-efficiency charge-pump power supply that requires only 0.1F capacitors in 3.3V operation, enabling true RS-232 performance from a single power supply ranging from +3.3V to +5.0V.
Package Includes:
- 1 x RS232 to TTL SP3232 UART Transceiver Communication Serial Module
- 1 x 6-pin custom connector jumper wire
*Images are for illustration only; actual product may vary.
