RS232 to TTL Serial Interface Module
A board with the MAX3232 transceiver IC for TTL to RS232 communication.
- IC Chip: MAX3232
- Operating Voltage (VDC): 3.3 ~ 5.5
- Length (mm): 45
- Width (mm): 32
- Height (mm): 15
- Weight (gm): 12
Features:
- Compact size board
- Operates up to 250 kbit/s
- Suitable for most microcontrollers
- Pre-assembled for convenience

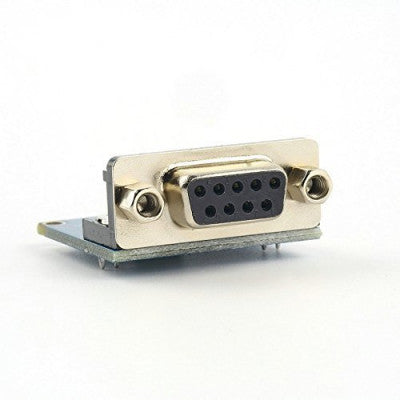

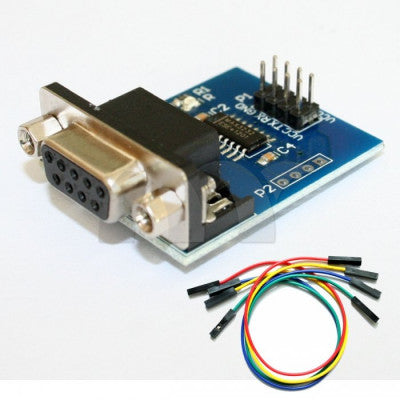

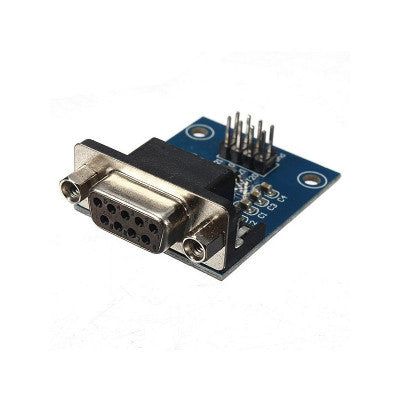

This RS232 to TTL Serial Interface Module is equipped with the MAX3232 transceiver IC, facilitating seamless serial communication between TTL and RS232 ports by handling the necessary electrical signal conversion. The board typically features a DB9 connector soldered at one end and four header pins with jumper cables at the other, allowing easy connection to breadboards or microcontroller project boards. The MAX3232CSE+ IC, housed in a 16-pin narrow SO package, operates within a voltage range of 3.0 V to 5.5 V and includes two receivers and transmitters each. With a maximum data rate of 120 kbps, this module requires four 0.1F charge-pump support capacitors for optimal functionality. Compatible with the renowned MAX3232 IC pins, this module seamlessly integrates with systems featuring a UART, making it ideal for use with ATMEL and PIC microcontrollers.
The RS232 to TTL Serial Interface Module is a versatile solution widely employed in various applications such as radio modification, phone flashing, XBOX360 flashing, GPS systems, vehicle detection, DVD flashing, hard disk repair, and set-top box upgrades. It also supports programming for STC MCU, NXP MCU, Renesas MCU, STM32 MCU, and N+-2EC MCU. This package includes 1 x RS232 to TTL Serial Interface Module.
*Images are for illustration only; actual product may vary.
