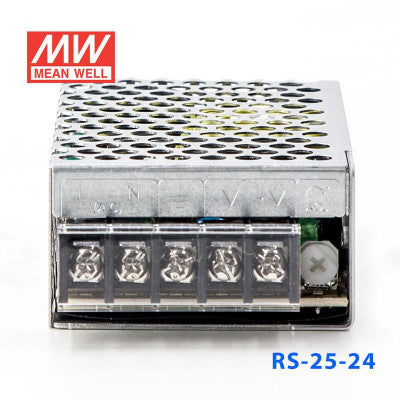

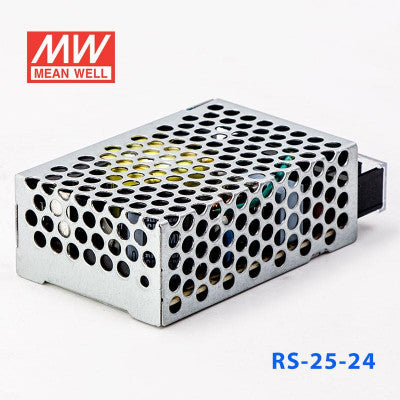

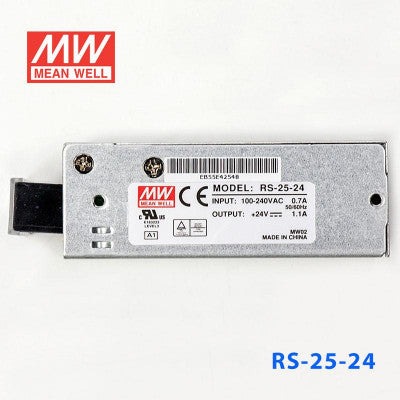

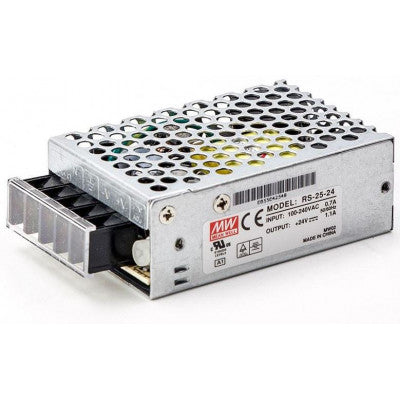

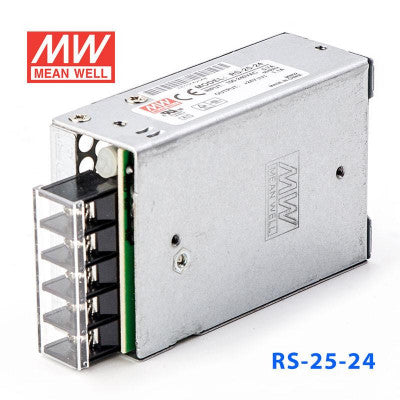

RS-25-24 Power Supply
24V Enclosed Type Power Supply with 26W Wattage and 3 Years Warranty
- Output Voltage: 24V
- Type: Enclosed Type
- Approx. Wattage: 26W
- Features: Standard
- Series: G3 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- 105°C long life electrolytic capacitors
- Short circuit, Overload, Over voltage, Over Temp. protections
- High efficiency and reliability
- High operating temperature up to 70°C
No load power consumption less than 0.5W. This power supply meets EMS EN50082-2/EN61000-6-2 standards and comes with a variety of protections including short circuit, overload, over voltage, and over temp. With a heavy industry level design, it can withstand 300VAC surge input for 5 sec. The compact size and high power density make it suitable for critical applications, with a LED indicator for power on and 100% full load burn-in test.
Specifications:
- AC input voltage range: 88~264VAC, 125~373VDC
- DC adjustment range: ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
- Overload protection: 110%~180%
- Over voltage protection: 115%~135% rated output voltage, hiccup mode, auto-recovery
- Withstand voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
- Working temperature: -20~+70°C
Related Documents:
- RS-25 Datasheet
- RS-25-24 Test Report
- CE Certificate (RS-25)
- UL Certificate (RS-25)
- CB Certificate (RS-25)
- TUV Certificate (RS-25)
- EMC Certificate (RS-25)
*Images are for illustration only; actual product may vary.
