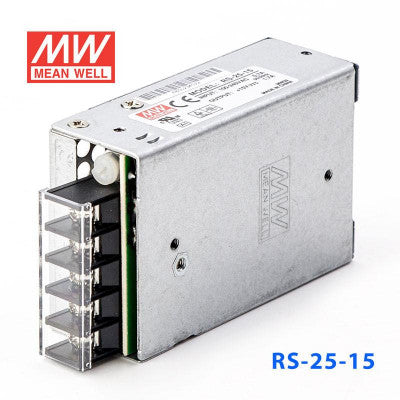

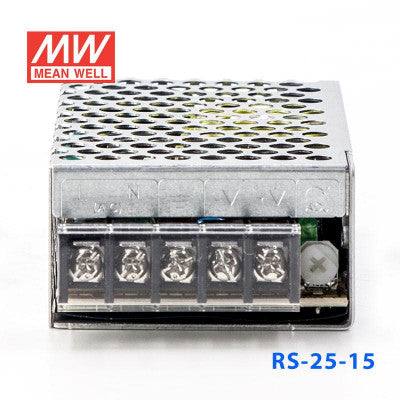

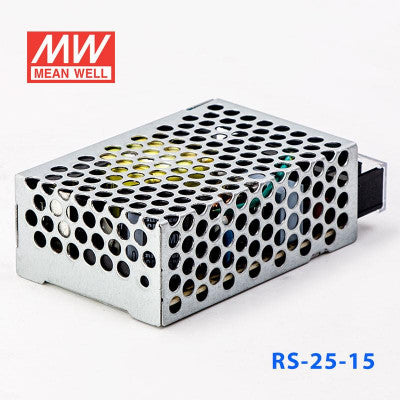

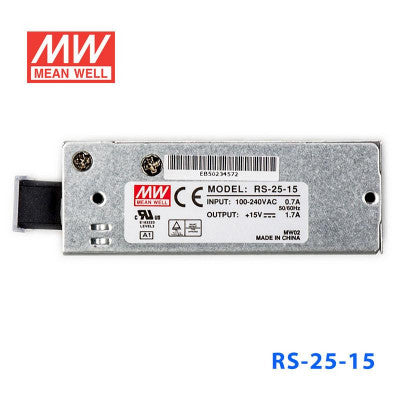

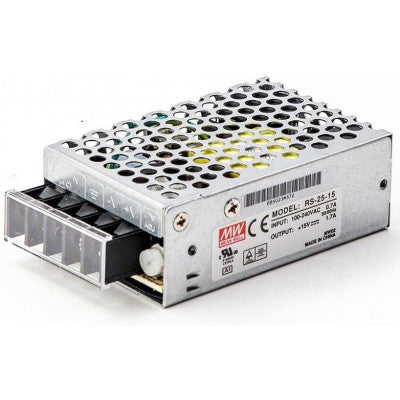

Enclosed Type 25W 15V Power Supply
An efficient and reliable enclosed power supply with a 3-year warranty
- Output Voltage: 15V
- Type: Enclosed Type
- Approx. Wattage: 25W
- Features: Standard
- Series: G3 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- No load power consumption <0.5W
- Protections: Short circuit, Overload, Over voltage, Over Temp.
- High operating temperature up to 70°C
- LED indicator for power on
All using 105°C long life electrolytic capacitors and designed to meet EMS EN50082-2/EN61000-6-2 standards. The power supply is suitable for critical applications and comes with a 3-year warranty for added peace of mind.
- AC input voltage range: 88~264VAC, 125~373VDC
- AC inrush current (max.): 30A at 230VAC
- DC adjustment range: ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
- Overload protection: 110%~180%
- Over voltage protection: 115%~135% rated output voltage, hiccup mode, auto-recovery
- Withstand voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
- Working temperature: -20~+70°C
- Vibration: 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Related Documents:
RS-25 Datasheet
RS-25-15 Test Report
CE Certificate (RS-25)
UL Certificate (RS-25)
CB Certificate (RS-25)
TUV Certificate (RS-25)
EMC Certificate(RS-25)
* Images are for illustration only; actual product may vary.
