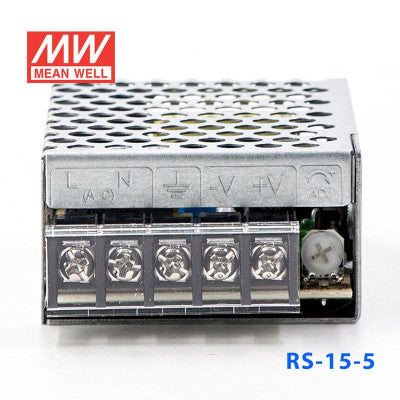

RS-15 Enclosed Type Power Supply
Reliable 15W power supply with standard features and a 3-year warranty
- Output Voltage: 5V
- Type: Enclosed Type
- Approx. Wattage: 15W
- Features: Standard
- Series: G3(Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- All using 105°C long life electrolytic capacitors
- Protections: Short circuit, Overload, Over voltage, Over Temp.
- High operating temperature up to 70°C
- Miniature size, high power density
No load power consumption less than 0.5W. Meet EMS EN50082-2/EN61000-6-2 standards. Suitable for critical applications with LED power indicator and 100% full load burn-in test.
- AC Input Voltage Range: 85~264VAC, 120~370VDC
- DC Adjustment Range: ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
- Overload Protection: >105%, hiccup mode
- Over Voltage Protection: 115%~135%, shut off
- Working Temperature: -20~+70°C
- Vibration: 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
- Safety Standards: UL60950-1, TUV EN60950-1 approved
Withstand 300VAC surge input for 5 sec. and 5G vibration test. High efficiency, long life, and high reliability make it ideal for heavy industry level (35~150W) usage. Terminal block connections for input and output and compact dimensions of 62.5x51x28. Packing includes 108pcs / 15.0kg.
Related Documents:
- RS-15 Datasheet
- RS-15 Test Report
- CE Certificate (RS-15)
- UL Certificate (RS-15)
- CB Certificate (RS-15)
- TUV Certificate (RS-15)
- EMC Certificate(RS-15)
*Images are for illustration only; actual product may vary.
