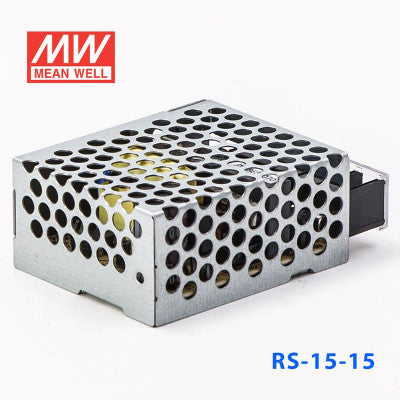

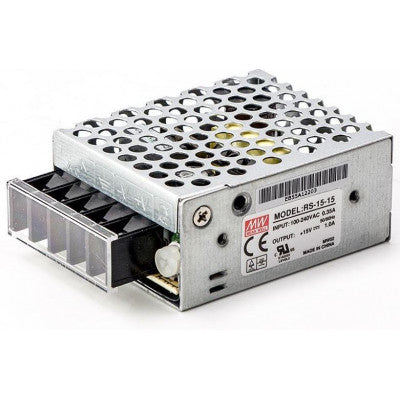

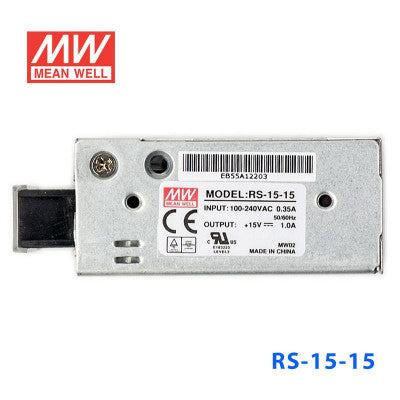

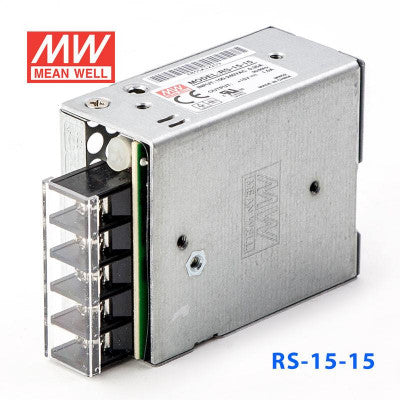

15W Enclosed Type 15V Power Supply - G3 Series
Standard power supply with high efficiency and reliability for critical applications.
- Output Voltage: 15V
- Type: Enclosed Type
- Approx. Wattage: 15W
- Features: Standard
- Series: G3 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- No load power consumption <0.5W
- 105°C long life electrolytic capacitors
- Protections: Short circuit / Overload / Over voltage / Over Temp.
- High operating temperature up to 70°C
All using 105°C long life electrolytic capacitors. Protections include Short circuit, Overload, Over voltage, and Over Temp. Meets EMS EN50082-2/EN61000-6-2 standards with heavy industry level (35~150W). Withstands 300VAC surge input for 5 sec and 5G vibration test. Miniature size with high power density. Includes LED indicator for power on and 100% full load burn-in test. Suitable for critical applications. Comes with a 3 years warranty.
- AC input voltage range: 85~264VAC, 120~370VDC
- DC adjustment range: ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
- Overload protection: >105%, hiccup mode
- Over voltage protection: 115%~135%, shut off
- Working temperature: -20~+70°C
- Vibration: 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes

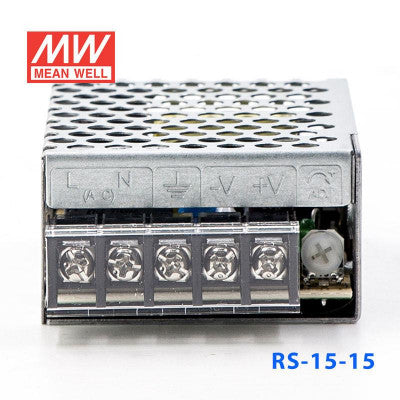

Safety standards include UL60950-1, TUV EN60950-1 approved. EMC standards are EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W). Connection via terminal block for input and output. Dimensions (LxWxH): 62.5x 51x 28. Case No. 971AP. Packing: 108pcs /15.0kg
Related Documents:
- RS-15 Datasheet
- RS-15-15 Test Report
- CE Certificate (RS-15)
- UL Certificate (RS-15)
- CB Certificate (RS-15)
- TUV Certificate (RS-15)
- EMC Certificate (RS-15)
*Images are for illustration only; actual product may vary.
