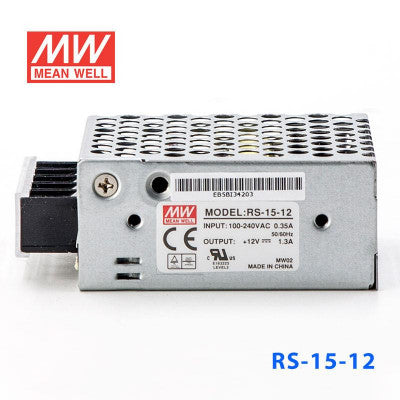

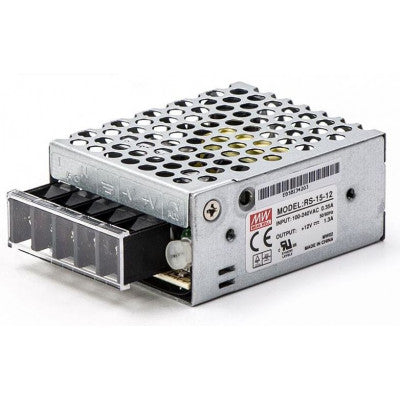

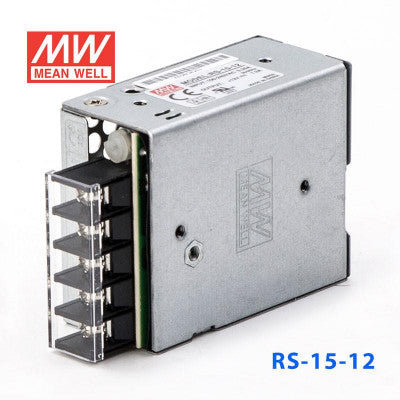

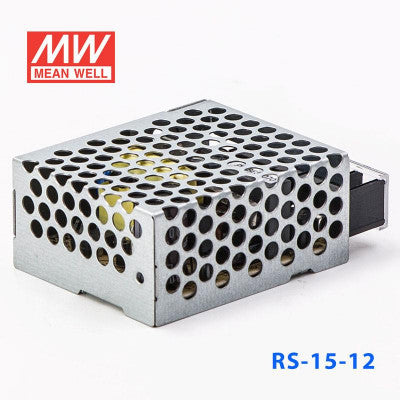

Enclosed Type 12V 15W Power Supply
A reliable power supply with standard features and a 3-year warranty.
- Type: Enclosed Type
- Output Voltage: 12V
- Approx. Wattage: 15W
- Features: Standard
- Series: G3 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- No load power consumption <0.5W
- 105°C long life electrolytic capacitors
- Short circuit / Overload / Over voltage / Over Temp. protections
- High operating temperature up to 70°C
All using 105°C long life electrolytic capacitors. Protections include Short circuit / Overload / Over voltage / Over Temp. Meets EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W). Withstands 300VAC surge input for 5 sec. Miniature size, high power density. LED indicator for power on. 100% full load burn-in test. Suitable for critical applications.
- AC input voltage range: 85~264VAC, 120~370VDC
- DC adjustment range: ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
- Overload protection: >105%, hiccup mode
- Over voltage protection: 115%~135%, shut off
- Withstand voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
- Working temperature: -20~+70°C
- Vibration: 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
- Safety standards: UL60950-1, TUV EN60950-1 approved

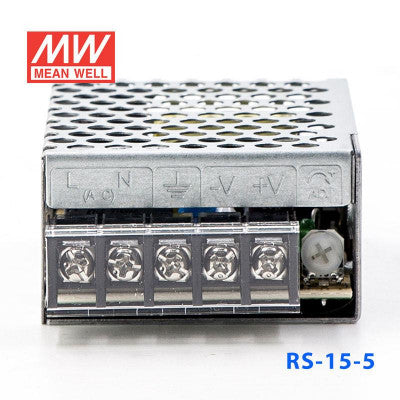

Connection via terminal block for input and output. Dimensions (LxWxH): 62.5x 51x 28. Case No. 971AP. Packing: 108pcs /15.0kg
Related Documents: RS-15 Datasheet, RS-15-12 Test Report, CE Certificate (RS-15), UL Certificate (RS-15), CB Certificate (RS-15), TUV Certificate (RS-15), EMC Certificate(RS-15)
