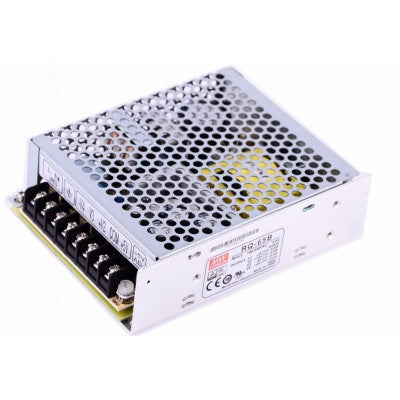

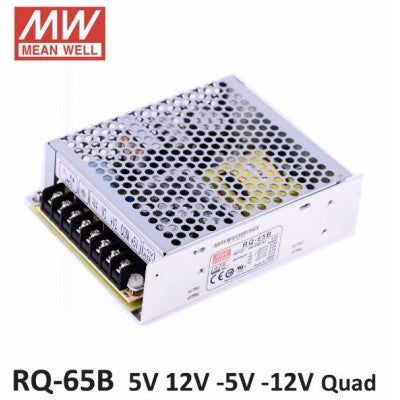

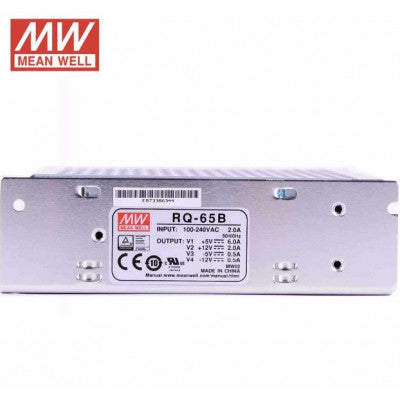

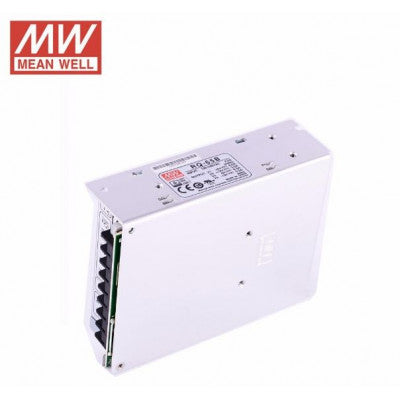

MEAN WELL Enclosed Type Quad 4 Output Power Supply
64.6W output power with 3 years warranty and reliable features.
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 12 VDC
- Output Voltage-Channel 3: -12 VDC
- Output Current-Channel 1: 5A
- Output Current-Channel 2: 2.8A
- Output Current-Channel 3: 0.5A
- Number of Outputs: 3
- Output Power: 64.6 W
- Type: Enclosed Type Quad 4 Output
- Features: Standard Series RQ (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
The MEAN WELL Enclosed Type Quad 4 Output Power Supply is designed for reliability and efficiency. It features a 3-year warranty and can withstand high operating temperatures up to 70°C. With multiple output channels and various protections, this power supply ensures a stable power output for your devices.
Specifications:
- Manufacturer: MEAN WELL
- Input Current: 1.2A/230VAC, 2A/115VAC
- Operating Temperature: -25 to +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 to 63Hz
- Protection: Short circuit / Overload / Over voltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 129 mm
- Width: 98 mm
- Height: 38 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RQ-65
- Model: RQ-65B
- Brand: MEAN WELL
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
- Unit Weight: 440 g
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
