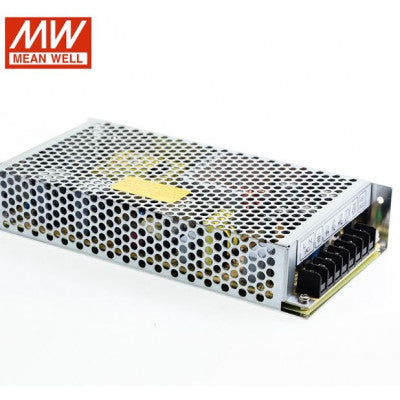

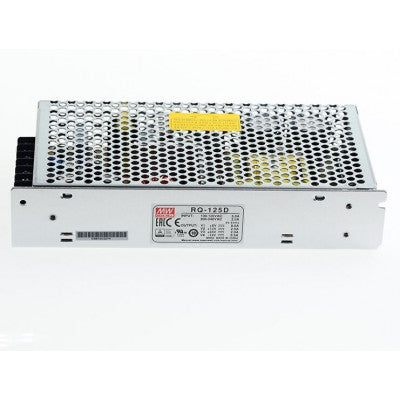

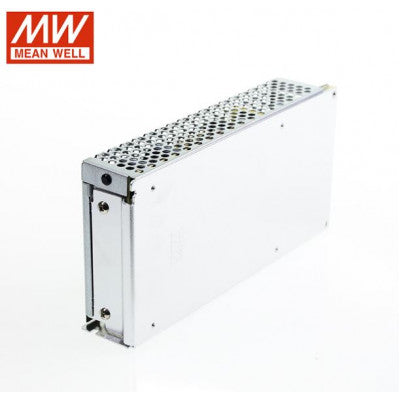

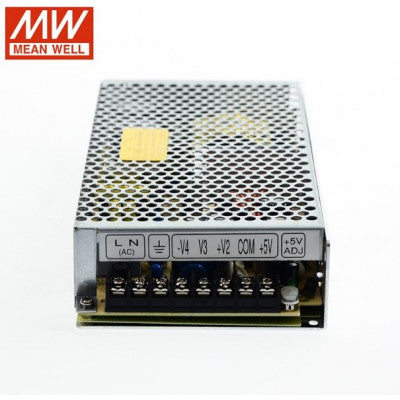

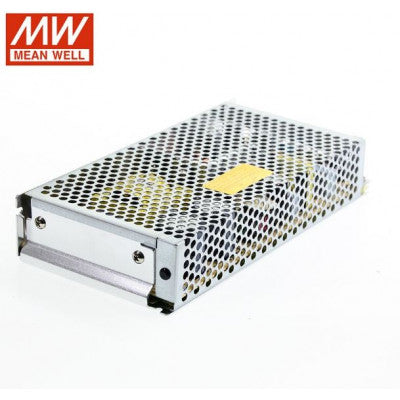

MEAN WELL Enclosed Quad Output Power Supply RQ-125D
Reliable 124W power supply with 4 output channels and 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 12 VDC
- Output Voltage-Channel 3: 24 VDC
- Output Voltage-Channel 4: 12 VDC
- Output Current-Channel 1: 8A
- Output Current-Channel 2: 2.5A
- Output Current-Channel 3: 2A
- Output Current-Channel 4: 0.5A
- Number of Outputs: 4 Output
- Output Power: 124 W
- Type: Enclosed Type Quad 4 Output
- Features: Standard Series RQ (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 132 VAC / 176 VAC to 264 VAC (Selected by Switch), 248 VDC to 373 VDC
Top Features:
- Short circuit, overload, and overvoltage protections
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
This MEAN WELL power supply is designed for high efficiency, long life, and reliability. It operates at a high temperature of up to 70°C and has undergone rigorous testing for vibration resistance. With a 3-year warranty, you can trust the RQ-125D for your power needs.
- Manufacturer: MEAN WELL
- Operating Temperature: -25 TO +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Protection: Short circuit / Overload / Overvoltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 199 mm
- Width: 98 mm
- Height: 38 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RQ-125
- Model: RQ-125D
- Brand: MEAN WELL
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
- Unit Weight: 700 g
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
