Reverse-Polarity SMA (RP-SMA) Connector
Popular reverse polarity RF connector for WiFi and WLAN systems.
- Frequency (MHz): 0 - 3.0 GHz
- Working Voltage (V): 170 - 335 VRMS (depends on cable)
- Dielectric Withstanding Voltage: 500-1000 VRMS (depends on cable)
- VSWR: < 1.5
- Contact Resistance: Centre: 6 milliohm, Outer: 2 milliohm
- Power Handling (W): 10
- Insulator Resistance: 500 Megaohms
- Body, Metal Parts: Brass with Ni, Gold or Passivity (As required)
- Center Contact: Jack: Beryllium Copper Gold Plated, Plug: Brass Gold Plated
- Insulators: Teflon
- Crimp Ferules: Annealed copper Ni/ Au plated
- Clamp Gaskets: Silicone rubber
- Operational Temperature: -30 to 60 C
- Humidity: 5 - 95%
Top Features:
- High-quality material used
- MIL grade available on request

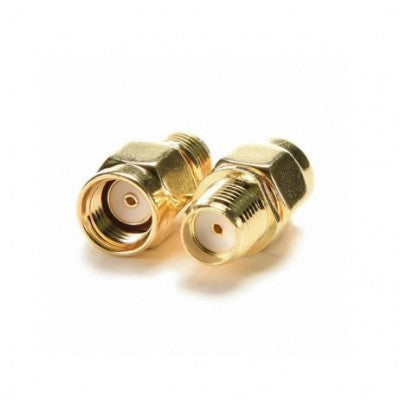

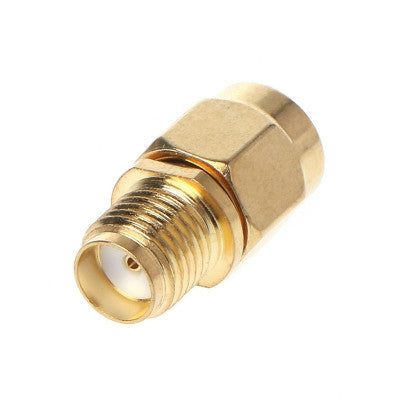

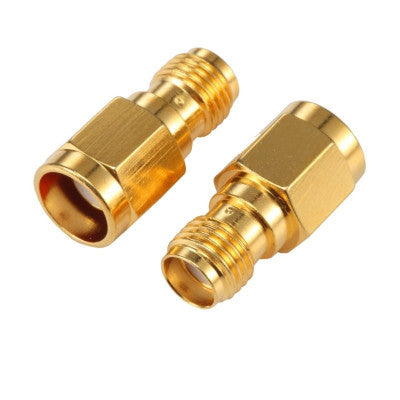

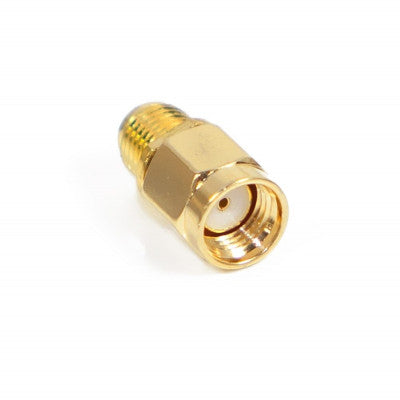

Package Includes: 1 x RPSMA Male To SMA Female Adapter
* Images are for illustration only; actual product may vary.
