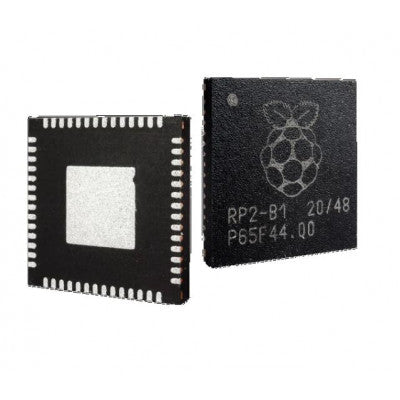

RP2040 Raspberry Pi Microcontroller
High-performance microcontroller with dual ARM Cortex-M0+ cores and rich peripheral set
- Processor: Dual ARM Cortex-M0+ cores
- SPI Flash: 2M on-board QSPI
- Maximum Clock Frequency (MHz): 133
- SRAM (KB): 264
- GPIO: 30
- PWM: 16 channels
- ADC: 3 available 12-bit
- UART: 2
- I2C: 2 Buses
- SPI: 2 Buses
- Length (mm): 25
- Width (mm): 25
- Height (mm): 8
- Weight (gm): 8
Top Features:
- Dual ARM Cortex-M0+ @ 133MHz
- 264kB on-chip SRAM in six independent banks
- Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
- 30 GPIO pins, 4 of which can be used as analog inputs
RP2040 is the debut microcontroller from Raspberry Pi, offering high performance, low cost, and ease of use. With a large on-chip memory, symmetric dual-core processor complex, and rich peripheral set, it provides professional users with unrivaled power and flexibility. The RP2040 is designed to help you maximize its power, with detailed documentation and a polished Micro Python port.
Flexible I/O allows RP2040 to communicate with almost any external device, while its low cost helps lower the barrier to entry. The RP2040 is a stateless device, supporting cached execute-in-place from external QSPI memory. It is manufactured on a modern 40nm process node, delivering high performance and low power consumption.
Whatever your microcontroller application, from machine learning to motor control, RP2040 has the performance, feature set, and support to make your product excel.
* Images are for illustration only; actual product may vary.
