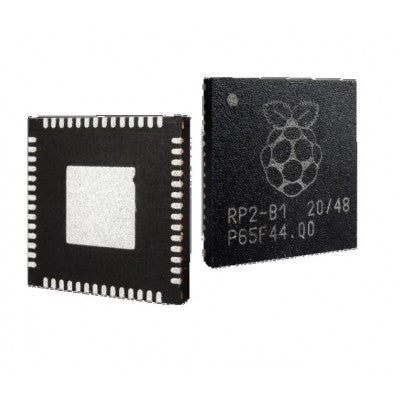

RP2040 Microcontroller IC by Raspberry PI REEL of 500
High-performance, low-cost microcontroller with rich features for professional users
- Dual ARM Cortex-M0+: 133MHz
- On-chip SRAM: 264kB in six independent banks
- Off-chip Flash memory: Support for up to 16MB via dedicated QSPI bus
- DMA controller
-
Peripherals:
- 2 UARTs
- 2 SPI controllers
- 2 I2C controllers
- 16 PWM channels
- USB 1.1 controller and PHY with host and device support
- 8 PIO state machines
- GPIO pins: 30 (4 can be used as analog inputs)
Top Features:
- Dual-core processor complex
- Rich peripheral set with PIO subsystem
- Flexible I/O for connecting to external devices
- Low-cost with high performance
RP2040 is a stateless device designed to maximize power and flexibility. With detailed documentation, MicroPython port, and UF2 bootloader, it's beginner-friendly and powerful. The modern 40nm process node ensures high performance and low power consumption.
Whatever your microcontroller application, RP2040 has the performance, feature set, and support to make your product excel, from machine learning to motor control, agriculture to audio.
