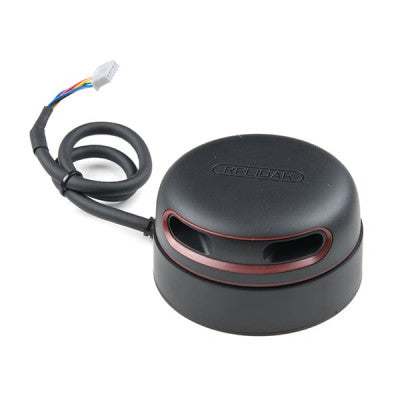

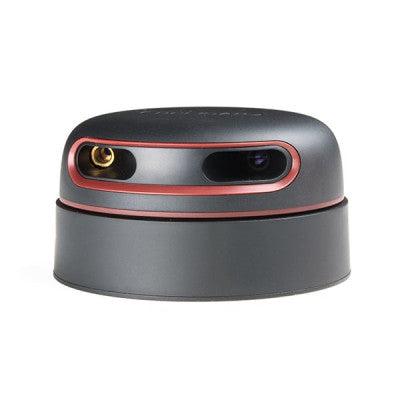

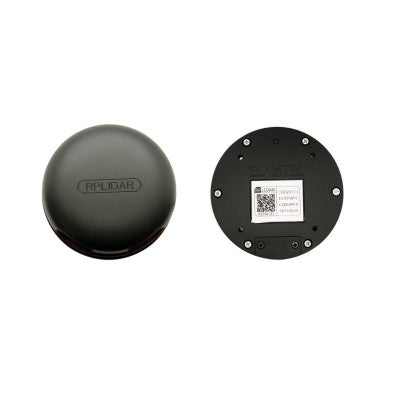

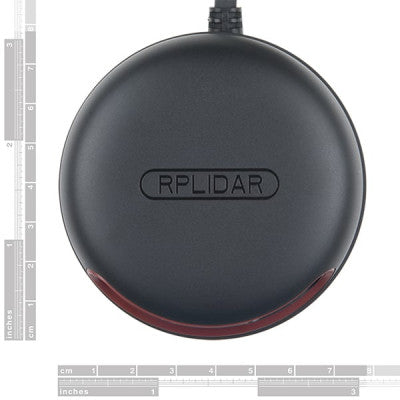

RP LIDAR A2M8 360 degrees Laser Range Finder-12 Meter Range
The next-generation low-cost 360 degrees 2D laser scanner solution with high rotation speed.
- Spec name: RP LIDAR A2M8 360 degrees Laser Range Finder
- Range: 12 meters
- Scanning Frequency: 10hz (600rpm)
- Resolution: 0.45
- Sample Rate: 8000 samples per second
- Power Source: 5V DC
- Interface: XH2.54-5P male socket
Top Features:
- 360-degree laser range scanning
- 8000 times sample rate
- Low Noise, Brushless Motor
- 12m Range Radius
The RPLIDAR A2M8 is the enhanced version of the 2D laser range scanner (LIDAR) capable of performing 2D 360-degree scans within a 12-meter range. It utilizes SLAMTEC patented OPTMAG technology to ensure stable long-term operation. The system is ideal for mapping, localization, and object/environment modeling.
The RPLIDAR A2 adopts a low-cost laser triangulation measurement system developed by SLAMTEC, providing excellent performance in various indoor and outdoor environments. Each unit undergoes strict testing to meet FDA Class I laser safety standards before leaving the factory.
The RPLIDAR A2 is based on the laser triangulation ranging principle and features high-speed vision acquisition and processing hardware. It can range more than 8000 times per second, emitting modulated infrared laser signals for accurate distance and angle measurements.

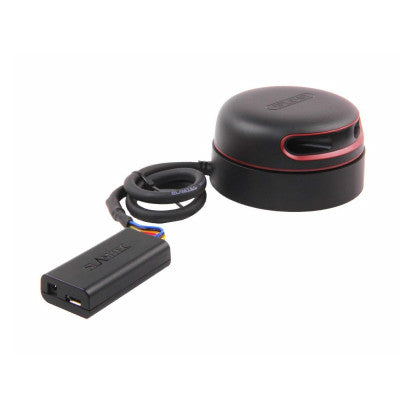

The package includes 1 x RP LIDAR A2M8 360 degrees Laser Range Finder with PWM motor driver embedded, 1 x USB Cable, 1 x DC Cable, and 1 x Adapter Driver Board.
Application Scenarios:
- General robot navigation and localization
- Environment scanning and 3D re-modeling
- Service robot or industrial robot operations
- Home service/cleaning robot navigation and localization
*Images are for illustration only; actual product may vary.
