Robotbit IOBIT V2.0 Micro:bit Expansion Board
Low-cost expansion board for Micro:bit with built-in buzzer and easy IO port access.

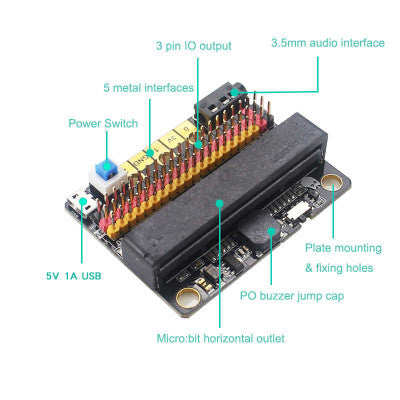

- Feature: 3.5mm audio interface
- Feature: 5 metal interfaces connected to micro:bit pins 0, 1, 2, 3V, GND
- Feature: USB 5V 1A power supply with self-recovery fuse
- Feature: 3.3V and 5V power interface

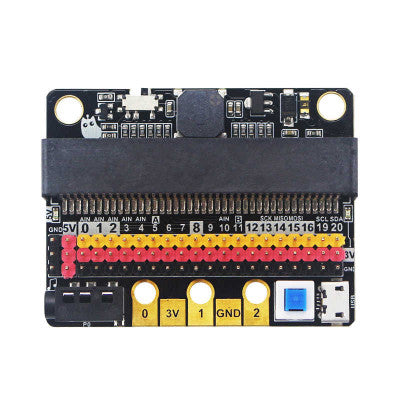

This expansion board is designed for easy access to the IO ports on the Micro:bit. It breaks out all the IO contacts on the Micro:bit and includes a built-in buzzer. The buzzer is connected to the P0 pin via a slide switch. The compact size makes it ideal for small projects using the Micro:bit.
- Support: 3V-5V sensor module
- Spec name: Micro:bit all pins lead
- Spec name: Bring your own buzzer (switching switch used to switch buzzer music output and audio port sound output)
- Spec name: Compatible for LEGO pin holes
- Spec name: Yellow and black differentiated 3pin interface
Images are for illustration only; actual product may vary.
