RL207 Silicon Rectifier
Voltage range of 50 to 1000 Volts and Current of 2.0 Amperes
- Spec name: RL207 Silicon Rectifier
- Voltage Range: 50 to 1000 Volts
- Current: 2.0 Amperes
- Peak Repetitive Reverse Voltage: 1000 V
- Working Peak Reverse Voltage: 700 V
- DC Blocking Voltage: 1000 V
- Non-Repetitive Peak Forward Surge Current: 70 A
- Operating Junction Temperature Range: -65 to +150 °C
- Storage Temperature Range: -65 to +150 °C
- Maximum Average Forward Rectified Current: 2 A
- Typical Junction Capacitance: 40 pF
Features:
- Low Reverse Current
- Low Forward Voltage Drop
- High Current Capability
- Plastic Material - U/L Flammability Classification 94V-0
Mechanical Characteristics:
- Case: DO-15, Molded Plastic
- Leads: Solderable per MIL-STD-202, Method 208
- Polarity: Color Band Denotes Cathode
- Approx Weight: 0.4 grams
- Mounting Position: Any
Related Document: RL207 Diode Data Sheet

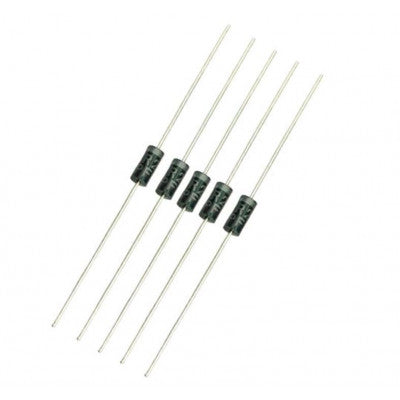

* Images are for illustration only; actual product may vary.
