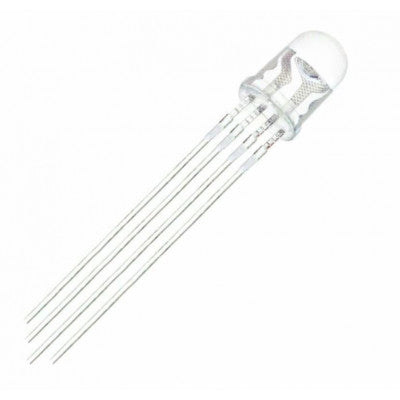

RGB LED - 5mm - Common Cathode

RGB LED - 5mm - Common Cathode

High-quality 5mm Common Cathode RGB LED for versatile color lighting.

A light-emitting diode (LED) is a semiconductor light source that emits light when current flows through it. Electrons in the semiconductor recombine with electron holes, releasing energy in the form of photons. The color of the light is determined by the energy required for electrons to cross the bandgap of the semiconductor. White light is obtained by using multiple semiconductors or a layer of light-emitting phosphor on the semiconductor device.

• LED Configuration: Common Cathode
• Forward voltage: 3.3 ~ 5V
• Reverse current: 50µA
• Continuous forward current: 20mA
• Power dissipation: 100mW
• LED Diameter: 5mm
• No of Pin: 4
• Operating Temperature: -40 ~ 85°C
• Mounting Type: Through Hole
• Package Includes: 1 x RGB LED - 5mm - Common Cathode

• Vibrant RGB color mixing
• Standard 5mm LED diameter
• Easy through-hole mounting
• Low power consumption
• Wide operating temperature range
• Common cathode configuration
