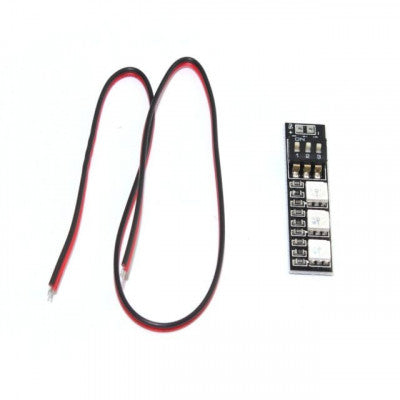

RGB 5050 5V LED Board 7 Colors with DIP Switch
Eye-catching LED board for Multi-rotors & FPV Quad-rotors
- Input Voltage: 4 to 6V
- BEC Size (L x W): 47 x 10 mm
- Weight: 5g
- Package Includes: 1 x RGB 5050 5V LED Board, 1 x Cable 30 cm
Top Features:
- Three RGB5050 LEDs
- One code switch for color selection
- Seven selectable colors
- Designed for 4-6V power source
This RGB 5050 5V LED Board with DIP Switch is perfect for Multi-rotors & FPV Quad-rotors powered by BEC or any 4-6V source. The board features three RGB5050 LEDs and a code switch for selecting from seven different colors. Each color has its power specifications:
- Blue: B ON, 0.35W, 0.03A
- Red: R ON, 0.35W, 0.03A
- Green: G ON, 0.35W, 0.03A
- Purple: B+R, 0.70W, 0.06A
- Cyan: B+G, 0.70W, 0.06A
- Yellow: R+G, 0.70W, 0.06A
- White: B+R+G, 1.05W, 0.09A
Add a vibrant and colorful effect to your multi-rotors or planes with this RGB LED board. It's easy to install and instantly enhances the visual appeal of your aircraft.
* Images are for illustration only; actual product may vary.
