RFM69 Series Wireless Communication Module
Low-power, high-bandwidth wireless digital communications module for various applications
- Frequency: 915MHz
- Power Output Capability: +20 dBm (100 mW)
- Sensitivity: -120 dBm at 1.2 kbps
- Selectivity: 16-tap FIR Channel Filter
- FSK Bit rates: 1.2kbps to 300kbps
- Voltage range: 1.8V to 3.6V
- Length(mm): 16
- Width(mm): 16
- Height(mm): 21
- Weight(g): 13.5
Top Features:
- Low cost and small
- Stable and consistent
- Supports up to 256 networks of 255 nodes per network
- Features AES encryption for data privacy
The RFM69HCW operates on the 915 MHz frequency with a power output capability of +20 dBm (100 mW) and sensitivity of -120 dBm at 1.2 kbps. It supports FSK bit rates from 1.2kbps to 300kbps and has a voltage range of 1.8V to 3.6V. This wireless communication module is suitable for applications such as medical devices, remote control, logistics tracking, warehouse inspection, electronic tags, consumer electronics wireless applications, low-power telemetry, and wireless sensor network applications.
The RFM69 series offers various models based on band MCU, power amplifier, data interface, and packaging methods. All models within the same family can communicate with each other, meeting FCC/CE standard parameters for client authentication needs. The RFM69 type is without MCU and has a transmit power below 13dBm.
The RFM69HCW uses an SPI to communicate with a host microcontroller and supports up to 256 networks of 255 nodes per network. It features AES encryption for data privacy and can transmit data packets up to 66 bytes long. With a frequency of 915 MHz, it can transmit at up to 100mW and up to 300kbps, with the ability to adjust these values to suit different applications.

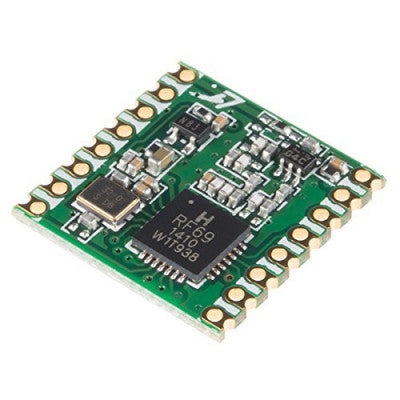

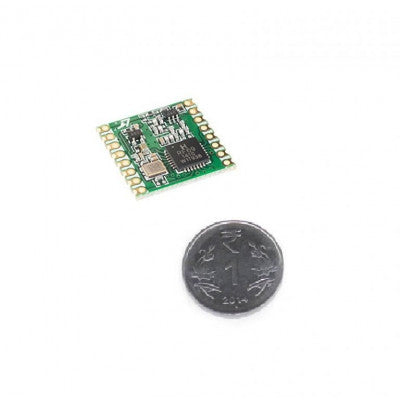

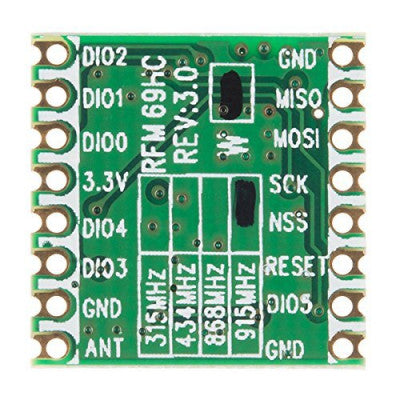

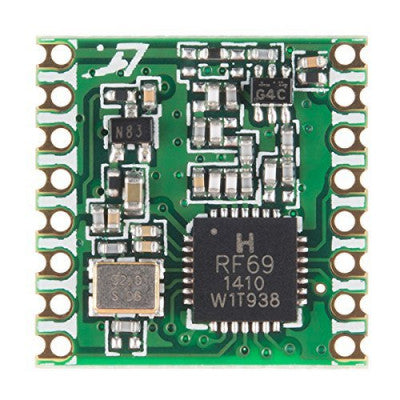

Package Includes: 1 x RFM69HCW Wireless Receiving Module-915 Mhz
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
