Nano Board
Compact Arduino-compatible board with versatile communication options.
- Microcontroller: ATmega328P
- NRF24L01+: 2.4G wireless
- Architecture: AVR
- Operating Voltage: 5V
- Flash Memory: 32KB (2KB used by bootloader)
- SRAM: 2KB
- Clock Speed: 16MHz
- Analog I/O: 8 Pins
Features:
- ATmega328P-MU QFN32 with latest bootloader

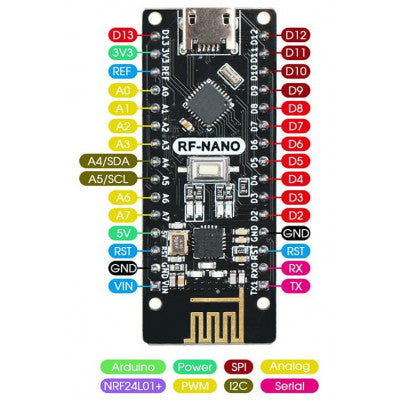

- RF-Nano PIN-PIN compatible with Arduino Nano V3.0
- Integrated NRF24L01+ module for 2.4G wireless connectivity
- Super small volume design, no soldering required
The Nano Board provides UART TTL (5V) serial communication through digital pins 0 (RX) and 1 (TX). It features an FTDI FT232RL for USB communication, with RX and TX LEDs indicating data transmission. Additionally, it supports I2C (TWI) and SPI communication. The board is compatible with the Arduino software, offering a serial monitor for easy data exchange.
The SoftwareSerial library enables serial communication on any digital pin. The Wire library simplifies I2C bus usage. For SPI communication, refer to the ATmega328P datasheet.

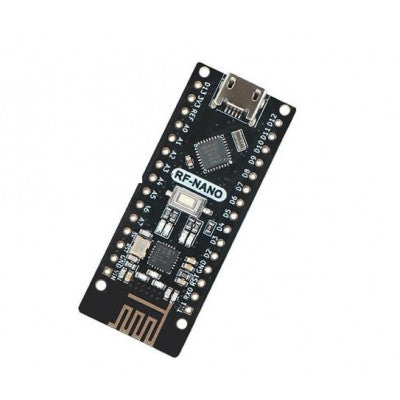

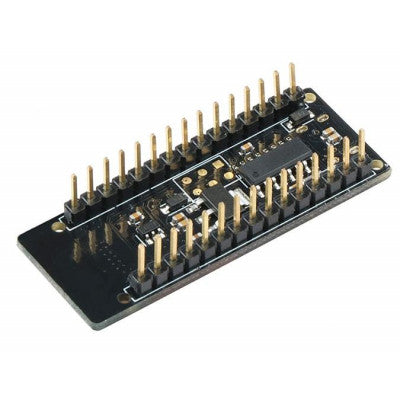

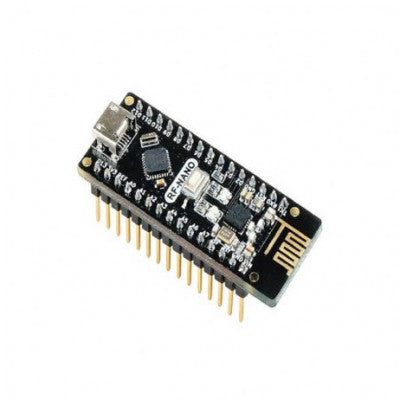

Package Includes: 1 x RF Nano Integrated NRF24L01 Wireless Module
* Images are for illustration only; actual product may vary.
