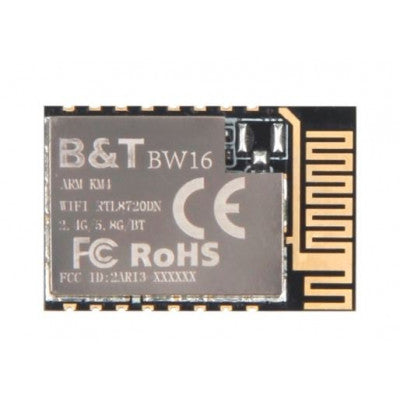

Realtek RTL8720DN WiFi and Bluetooth Module
A highly integrated module supporting WiFi 5G and Bluetooth Low Energy 5.0
- Antenna Type: IPEX connect or PCB Antenna
- Major Chipset: RTL8720DN
- Power Supply: 3.3±5% V
- Dimension: 24.0*16.0*3.0mm (LxWxH) ±0.2mm
- Operating Temperature: -20°C~85°C
- Storage Temperature: -40°C~125°C
- Operating Humidity: 10%~90% (non-condensing)
- Storage Humidity: 5%~90% (non-condensing)
- Certification: RoHS compliance, FCC, CE, SRRC
Top Features:
- Supports WiFi 2.4G and WiFi 5G
- WiFi low power mode
- Bluetooth (BLE) 5.0
- IEEE 802.11 a/b/g/n standards
The Realtek RTL8720DN is a highly integrated WiFi and Bluetooth module featuring the main chip RTL8720DN, a high-performance MCU named KM4, a low power MCU named KM0, WLAN MAC, WLAN baseband, RF, Bluetooth, and peripherals. It offers 5G WiFi and Bluetooth 5.0 functionality, making it suitable for various applications including BLE beacons, industrial wireless control, Bluetooth gateways, wearable electronic devices, security ID tags, and smart homes.
Compared to the ESP series, this module provides additional functions and can be widely utilized across different industries.
*Images are for illustration only; actual product may vary.
