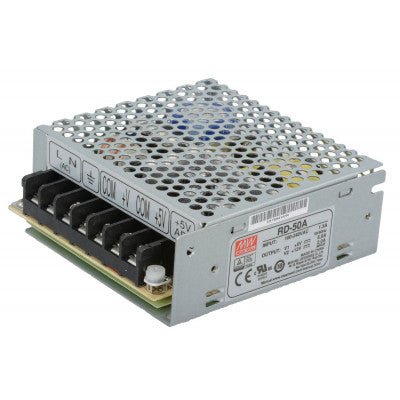

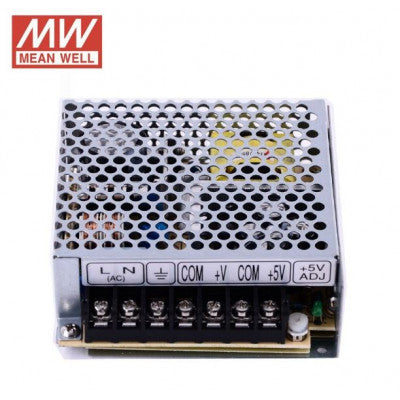

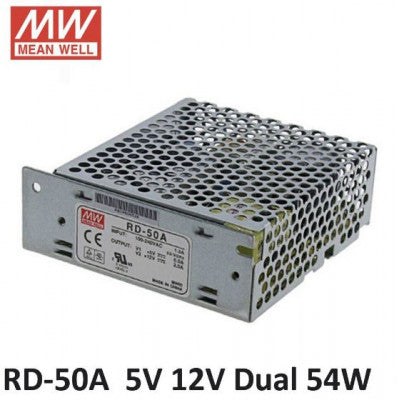

MEAN WELL Dual Output Enclosed Power Supply RD-50A
Reliable dual output power supply with 54W output power and 3-year warranty.
- Manufacturer: MEAN WELL
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 12 VDC
- Output Current-Channel 1: 6A
- Output Current-Channel 2: 2A
- Number of Outputs: 2 Output
- Output Power: 54 W
- Type: Enclosed Type
- Features: Standard Series RD (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input
- Short circuit, overload, and overvoltage protections
- LED indicator for power on
- High efficiency and reliability
The MEAN WELL RD-50A dual output enclosed power supply is designed for commercial use. It has an input voltage range of 88 VAC to 264 VAC and 125 VDC to 373 VDC. With an output power of 54W, this power supply offers 5VDC and 12VDC outputs with 6A and 2A current ratings respectively.
It features a compact enclosed design and comes with a 3-year warranty for added peace of mind. The power supply is equipped with various protections including short circuit, overload, and overvoltage protection. It also has a high operating temperature of up to 70°C, making it suitable for a wide range of applications.
The MEAN WELL RD-50A power supply undergoes a 100% full load burn-in test and uses 105°C long-life electrolytic capacitors for enhanced durability. It is designed to withstand 300VAC surge input for 5 seconds and has passed a 5G vibration test for reliability.
With compliance to safety standards such as UL62368-1 and TUV EN62368-1, this power supply ensures safe and reliable operation. It is ideal for use in various commercial applications that require a dual output power supply with high efficiency and long-term reliability.
