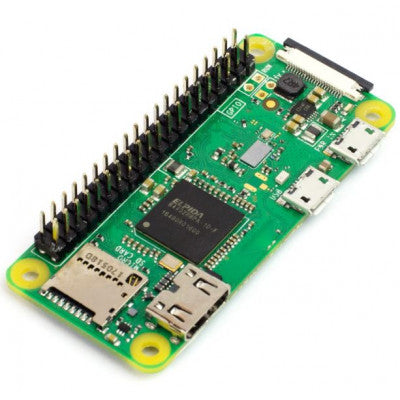

The Brand New Raspberry Pi Zero WH Wireless (with Pre-Soldered Header)
An ultra-low-cost, ultra-small variant of the original Raspberry Pi with onboard Wireless Internet & Bluetooth.
- Processor: Broadcom BCM2835 1GHz
- RAM: 512MB
- Ports: Mini HDMI, USB On-The-Go, Micro USB power
- Header: HAT-compatible 40-pin
- Connectivity: 802.11b/g/n Wireless LAN, Bluetooth 4.1, Bluetooth Low Energy (BLE)
Top Features:
- Ultra-small size for embedded applications
- BCM2835 chipset overclocked to 1GHz
- Onboard Wireless Internet & Bluetooth
- Low power consumption (~140mA at 5V)
The Raspberry Pi Zero WH Wireless is a tiny board measuring just 65mm x 30mm, perfect for wearables, prototyping, and embedded applications. It features the same 1080p video output as its larger siblings, with a BCM2835 chipset overclocked to 1GHz and 512MB RAM. The 40 pin GPIO layout allows for customization, and the board only uses ~140mA at 5V.
While lacking some features of larger Raspberry Pi models, the Zero WH Wireless offers a micro-USB power port, a micro USB OTG host port, and a mini HDMI port for video output. It's ideal for those who prefer pre-soldered headers and a compact design.
The unpopulated GPIO, composite (RCA) header, and reset header provide flexibility for customization. The absence of DSI screen port, ethernet, analog audio, and full-sized USB ports is compensated by the compact form factor and essential connectivity options.
Whether you need GPIO pins or prefer a header for easy access, the Raspberry Pi Zero WH Wireless caters to a wide range of projects. Its small size and essential features make it a versatile choice for tinkering and prototyping.
*Images are for illustration only; actual product may vary.*
