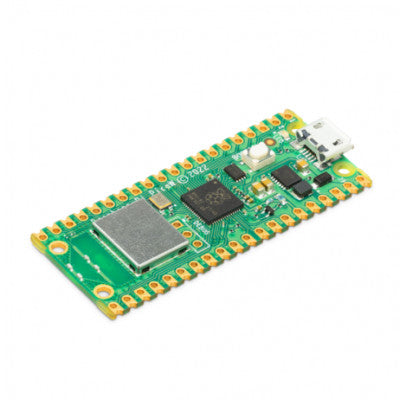

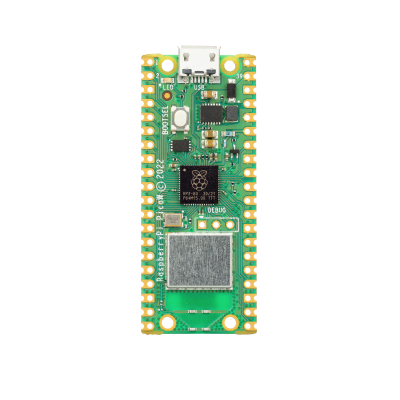

Raspberry Pi Pico W
A compact IoT solution with 2.4GHz wireless LAN for seamless connectivity.
- Brand: Raspberry Pi
- CPU: Dual-core Arm Cortex-M0+ @ 133MHz
- Memory: 264KB on-chip SRAM; 2MB onboard QSPI flash
- Interfacing: 26 GPIO pins, including 3 analog inputs
- Connectivity: 2.4GHz IEEE 802.11b/g/n wireless LAN, on-board antenna
- Input power: 1.8–5.5V DC
- Operating temperature: -20°C to +70°C
- Dimensions (mm) L x B: 21mm x 51mm
Key Features:
- RP2040 microcontroller with 2MB flash memory
- On-board 2.4GHz wireless LAN (802.11n)
- Micro USB B port for power and data
- 40-pin 21mmx51mm DIP style PCB

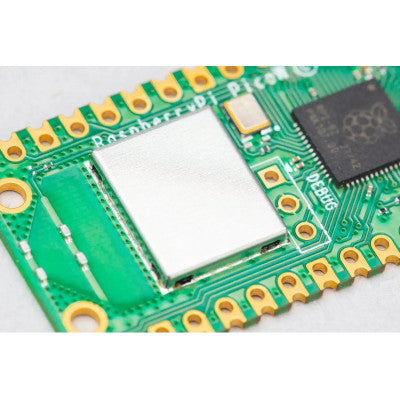

At the heart of Raspberry Pi Pico W is the RP2040 chip, featuring dual ARM Cortex-M0+ cores clocked at 133MHz, 256KB RAM, and 30 GPIO pins. The addition of 2MB QSPI Flash memory enhances code and data storage capabilities. The Pico W also incorporates the Infineon CYW43439 wireless chip supporting IEEE 802.11 b/g/n wireless LAN and Bluetooth 5.2.
The Pico W offers a simple yet flexible power supply architecture, allowing various options for powering the unit. With a comprehensive SDK, software examples, and documentation, it is ideal for IoT applications and projects requiring wireless communication.
Package Includes: 1 x Raspberry Pi Pico W
*Images are for illustration only; actual product may vary.*
