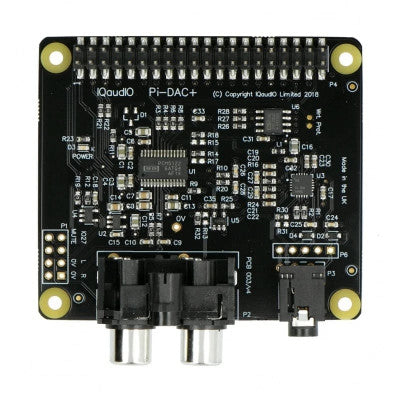

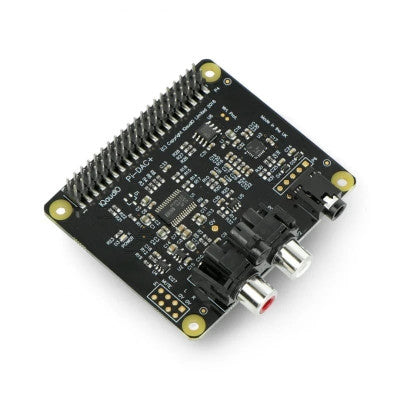

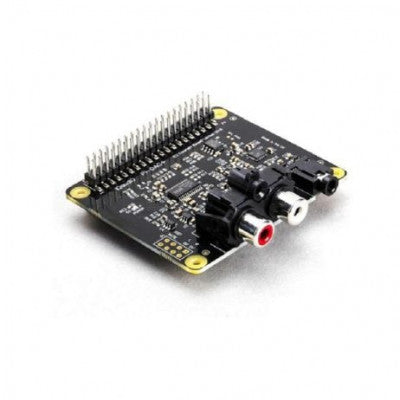

IQaudio DAC+
An audio output HAT for Raspberry Pi with high-resolution digital audio support.
- Compatibility: Raspberry Pi 1 Model B+ onwards
- Audio Resolution: 24bit 192kHz
- DAC: Texas Instruments PCM5122
- Connectors: Phono connectors for stereo analog audio
- GPIO Header: 40-pin, no soldering required
- Headphone Amplifier: Dedicated
- Power: Raspberry Pi PSU powered
- Compatibility: Volumio, Rune, Max2Play, MoodeAudio
Top Features:
- Standard 40-pin header
- PCM5122 DAC
- 24-bit 192kHz audio
- Dedicated headphone amplifier
DAC+ is designed to deliver high-quality audio output for Raspberry Pi models from Raspberry Pi 1 Model B+ onwards. It features a Texas Instruments PCM5122 DAC for 24bit 192kHz high-resolution digital audio support. The DAC+ connects to the Raspberry Pi via the 40-pin GPIO header, eliminating the need for soldering or external power.
The audio output is delivered through a pair of phono connectors, and the DAC+ also includes a dedicated headphone amplifier for enhanced audio experience. The onboard EEPROM allows for auto-configuration, and the power LED indicates the status of the device.
Compatible with popular audio software such as Volumio, Rune, Max2Play, and MoodeAudio, the IQaudio DAC+ is a versatile audio solution for Raspberry Pi enthusiasts.
- Pack Includes: 1 x Raspberry PI IQaudio DAC+
* Images are for illustration only; actual product may vary.
