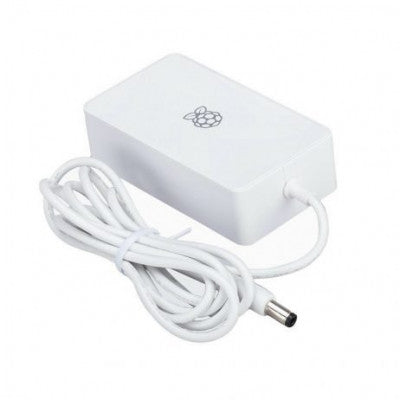

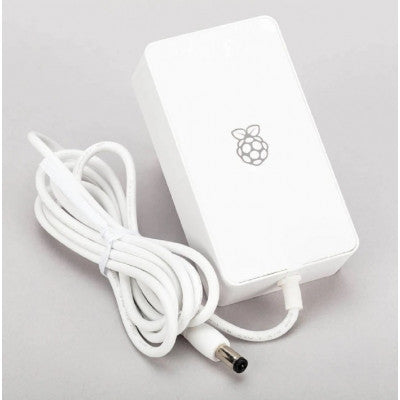

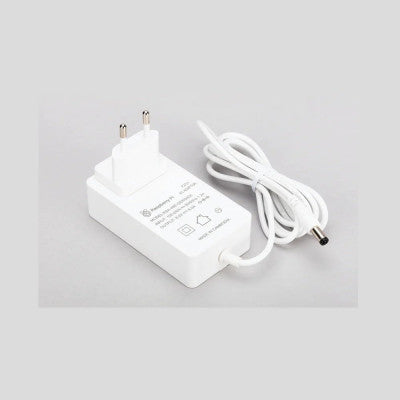

Raspberry Pi Build HAT Power Supply
Power your Raspberry Pi Build HAT projects with ease
- Output: 8V DC, 6A
- Cable: 1.5M, 16 AWG (Premium Quality)
Top Features:
- Input: 110-240V AC
- Output: 8V DC, 6A
- Cable: 1.5M, 16 AWG (Premium Quality)
The Raspberry Pi Build HAT Power Supply is designed to power the Build HAT and connected LEGO Technic motors, as well as your Raspberry Pi computer. It is compatible with LEGO Technic motors and sensors included in the LEGO Education SPIKETM Portfolio. The Build HAT combines the power of Raspberry Pi computing with easy building opportunities to help you make creative and robust projects.
Technical Specifications:
- Output voltage: +8.0V DC
- Minimum load current: 0.01A
- Nominal load current: 6.0A
- Maximum power: 48.0W
- Load regulation: 5%
- Line regulation: 5%
- Ripple & noise: 200mVp-p
- Rise time: 100ms maximum to regulation limits for DC outputs
- Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
- Protection: Short circuit protection, Overcurrent protection, Overvoltage protection
- Efficiency: 87.77% minimum (output current from 100%, 75%, 50%, 25%)
- Output cable: 1.5m 16AWG
- Output connector: Barrel connector 5.5mm 2.1mm 11mm Centre positive
Package Includes:
- 1 x Raspberry Pi Build HAT Power Supply
Images are for illustration only; actual product may vary.
