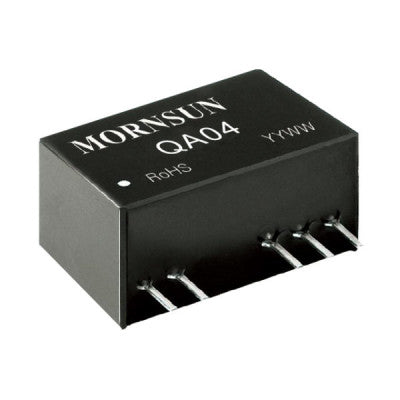

QA04 Mornsun 12V to +15V/-8V DC-DC Converter Power Supply Module
Efficient and compact power supply module for IGBT drivers.
- IGBT DRIVER
- I/p Voltage range: 9-15V
- Nominal voltage: 12V
- O/p voltage: +15/-8.0V
- O/p current: +100/-80mA
- Wattage: Not specified
- Isolation: 3000VAC
- Package: SIP
- Package Includes: 1 x QA04 Mornsun 12V to +15V/-8V DC-DC Converter Power Supply Module for IGBT Driver - Ultra-Compact SIP Package
Top Features:
- High efficiency up to 80%
- Ultra-Compact SIP package
- Excellent thermal characteristic
- I/O isolation test voltage 3000 VAC
This QA04 Mornsun DC-DC Converter Power Supply Module is designed for IGBT drivers, with an input voltage range of 9-15V and a nominal voltage of 12V. The output voltage is +15/-8.0V with an output current of +100/-80mA. The module offers high efficiency up to 80% and features an ultra-compact SIP package with excellent thermal characteristics. It has an I/O isolation test voltage of 3000VAC and ultra-low isolation capacitance.
The operating ambient temperature range for this module is -40 to +105 degrees Celsius. It is stable for no-load operation and is approved by IEC60950, UL60950, and EN60950 standards.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
