PX4Flow Optical Flow Smart Camera
An optical flow smart camera with high light sensitivity and reprogrammable capabilities.
- Input Voltage Range: 5VDC
- Current Consumption: 115mA
- PCB Size: 49mm x 38mm
- Weight: 22g
Top Features:
- 168 MHz Cortex M4F CPU
- 752x480 image sensor
- 3D Gyro
- IR block filter

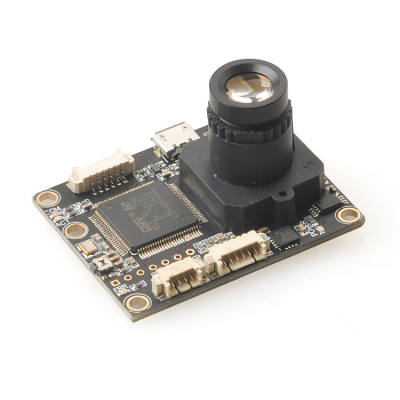

The PX4Flow is an optical flow smart camera with a native resolution of 752x480 pixels. It calculates optical flow on a 4x thrown and cropped area at 250Hz in bright outdoor conditions, showcasing excellent light sensitivity. This camera can also function indoors and in low outdoor lighting conditions at 120Hz without the need for an illumination LED. Additionally, it can be reprogrammed for various low-level computer vision tasks.
The STM32F407/417 processor provides the performance of a Cortex-M4 core running at 168 MHz. The camera features a 752x480 MT9V034 image sensor, L3GD20 3D Gyro, and a 16mm M12 lens with an IR block filter. With dimensions of 49mm x 38mm, the PX4Flow has a power consumption of 115mA at 5V.

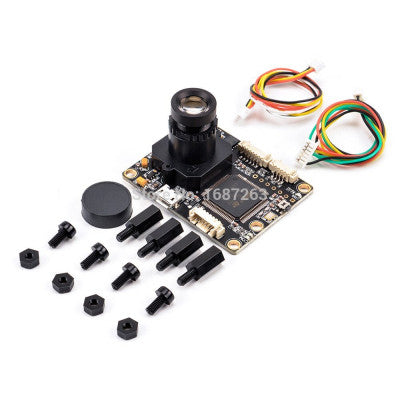

Package Includes:
- 1 x PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera
- 1 x Accessories set
Images are for illustration only; actual product may vary.
