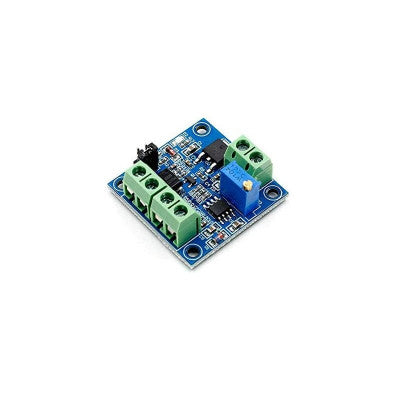

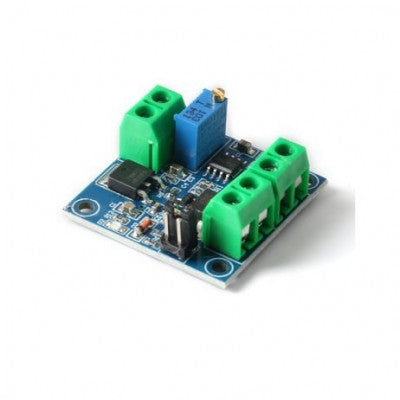

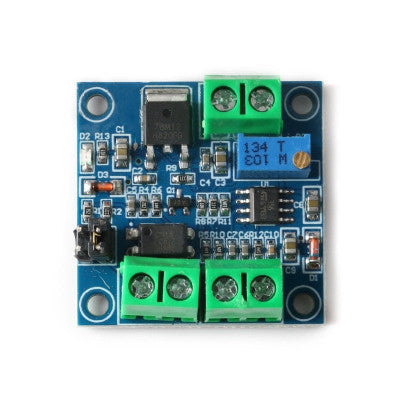

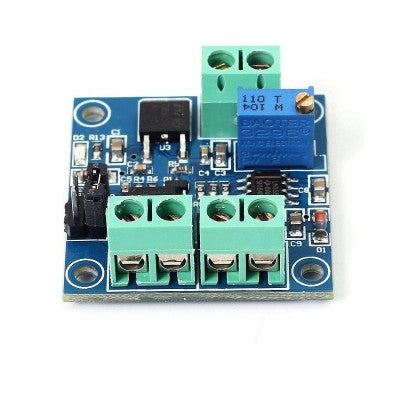

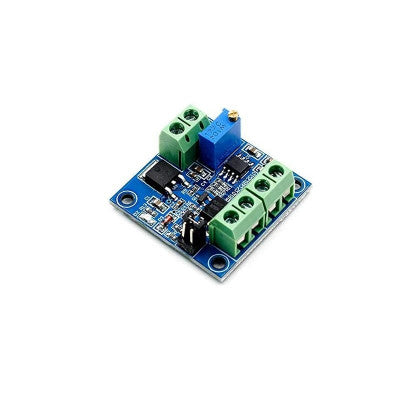

PWM to Voltage 0-100% to-10V Converter Module
Convert PWM digital signals into 0 to 10V analog signals for industrial applications.
- Conversion range: 0% - 100% PWM to 0-10V voltage
- PWM signal reception frequency range: 1KHz - 3KHz
- Operating voltage: 12V - 30V DC
- Allowable error: 5%

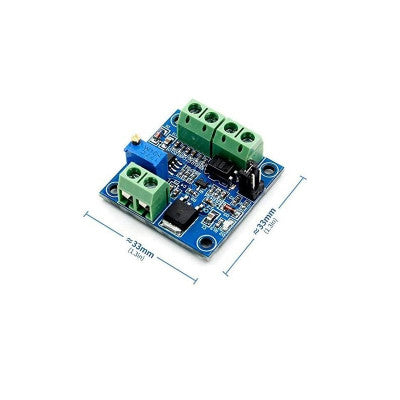

- Length (mm): 33
- Width (mm): 33
- Height (mm): 20
- Weight (gm): 20
- Shipment Weight: 0.025 kg
- Shipment Dimensions: 4 x 4 x 2 cm
Top Features:
- Single-chip embedded technology
- Easy to operate and fine-tune with potentiometer
- Selectable PWM signal input level range
- Compact and portable design
This Module can convert PWM digital signals into 0 to 10V analog signals. It can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. The module size is small, making it easy to apply in different places.

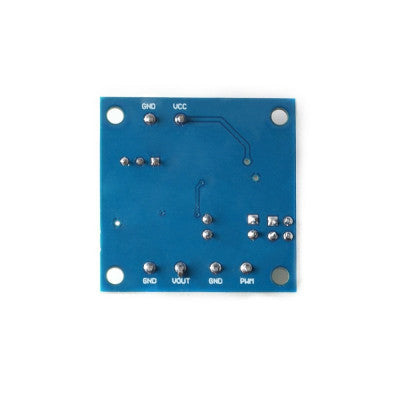

Pin Definition:
- VCC: Working power 12-30V
- GND: Ground
- PWM Input: PWM signal positive
- GND: Input voltage ground
- VOUT: Output voltage: 0-10V
- GND Output: Ground
Application:
This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage.
Package Includes:
- 1 x PWM to Voltage 0-100% to-10V Converter Module
