PV15-27B24R2 Series Regulated DC-DC Converters
Ultra-wide and ultra-high DC input of 100-1000VDC with high efficiency and reliability
- Input voltage: up to 1000VDC
- Input voltage range: 100-1000VDC
- Operating temperature: -40°C to +70°C
- I/O isolation test voltage: 4000VAC
Features:
- Input voltage up to 1000VDC
- Wide 10:1 input voltage range of 100-1000VDC
- Industrial grade operating temperature -40°C to +70°C
- High I/O isolation test voltage of 4000VAC
The PV15-27B24R2 series of regulated DC-DC converters are designed for applications in renewable energy industries such as photovoltaic, power generation, energy storage, inverters, and high-voltage DC conversions. These converters offer high efficiency, low ripple & noise, and multiple protection features to ensure stable and safe operation even under abnormal conditions.

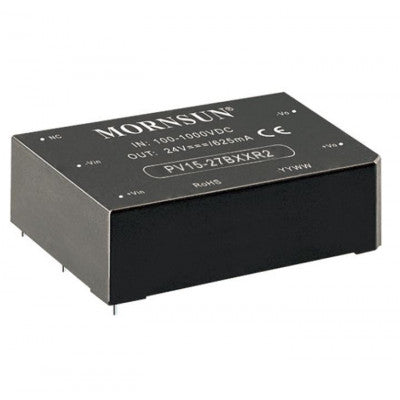

The package includes 1 x PV15-27B24R2 Mornsun 100-1000V to 24V DC-DC Converter 15W Power Supply Module - Horizontal PCB Mounting Package.
Specifications:
- I/p Voltage range: 100-1000VDC
- O/p voltage: 24V
- O/p current: 0.625A
- Wattage: 15W
- Isolation: 4000VAC
- Package: Horizontal (PCB Mounting)
Mounting options available for PCB mounting, chassis mounting, and RoHS and DIN-Rail mounting. The converters also feature reverse input voltage protection, output short circuit protection, over-voltage protection, and EN62109 safety approval for added reliability and safety.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
