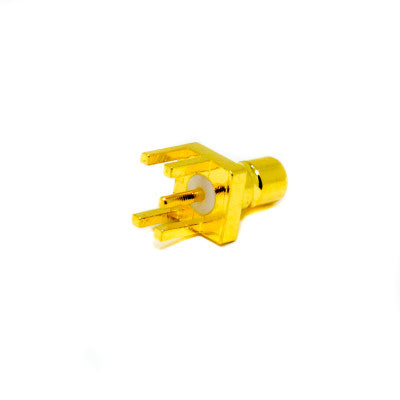

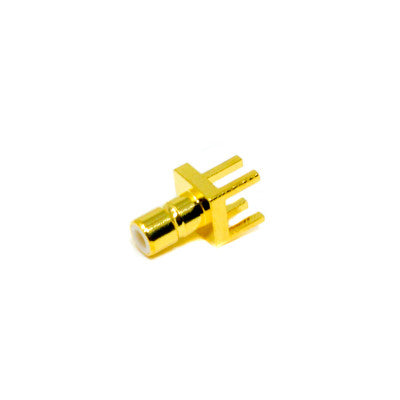

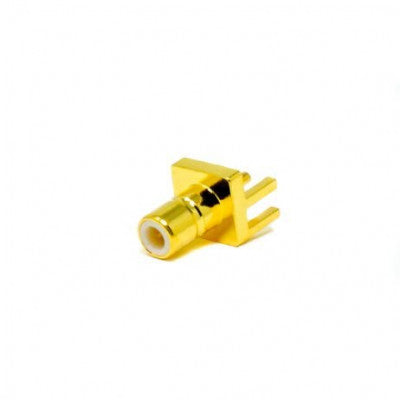

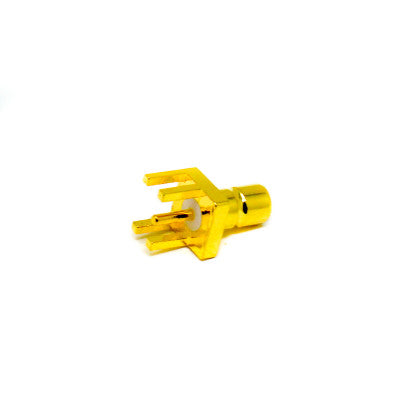

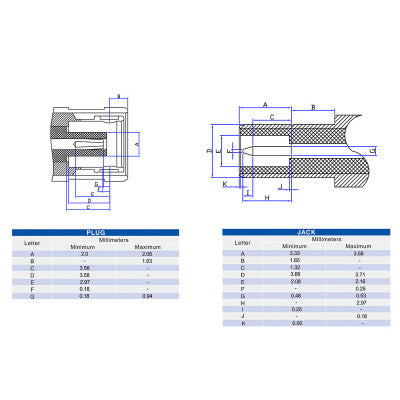

SMB Male Straight Connector for PCB
Designed for compatibility with industry-grade 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: PCB Mount
- Termination Style: Solder Type
- Mounting Feature: Plate Edge Mount
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: NA
- Package Includes: 1 x Plate Edge SMB Male Straight For PCB Connector
Top Features:
- Snap-on coupling design for fast installation
- Broadband performance and low reflection
- Die casting process in non-critical areas for cost reduction
Main Application of SMB Connectors:
- Aerospace and Defense: Test Stands
- Medical: Telemetry
- Commercial Vehicle: GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Routers, WIFI, Radio Boards
- Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Electrical Characteristics:
- Impedance: 75 ohm
- Frequency Range: 0~3 GHz
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance: 3mW
- Outer Contact Resistance: 25mW
- Insulation Resistance: 5GW
Mechanical Characteristics:
- Coupling: Snap-on
- Contact Retention: 4lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Temperature Range: -65°C ~ +165°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
