Teensy Prop Shield
Interactive light and sound effects shield for props and costumes.
- Input Supply voltage: 3.3V
- Flash Memory: 8MB
- 6-Axis Sensor, Linear Accelerometer & Magnetometer: FXOS8700CQ
- 3-Axis Digital Angular Rate Gyroscope: FXAS21002C
- Precision Pressure/Altitude & Temperature: MPL3115A2
- 2.6W Mono Class D Audio Power Amplifier: LM48310
- 64 Mbit (8 Mbyte) Serial Flash Memory: W25Q64FV
- Single 2-Input AND Gate: SN74AHCT1G08
- Length (mm): 49
- Width (mm): 18.3
- Height (mm): 3.6
- Weight (gm): 4
Top Features:
- Motion Sensors for interactive effects
- Clear 2W Audio Amplifier
- Fast LED Driver for APA102 LEDs
- 8MB Flash Memory for storage
The Teensy Prop Shield is designed for creating interactive light and sound effects on small props and costumes. It features 10DoF motion sensors, a 2W audio amp, high-speed LED drivers, and 8MB flash memory. The shield is slightly longer than Teensy 3.2 to accommodate mounting holes and power connections.
The Freescale 10DoF sensors include a 6-axis accelerometer and magnetometer, a 3-axis gyroscope, and a precision pressure/altitude gauge. The shield also includes a 2W amplifier for driving speakers, 5V buffers for LED control, and 8MB flash memory for various applications.

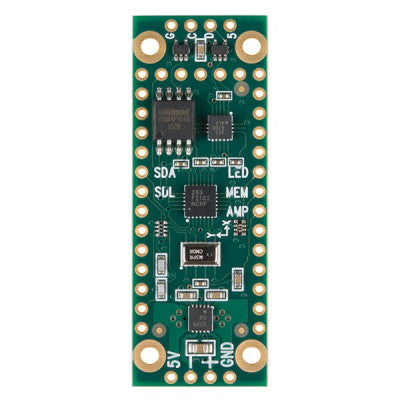

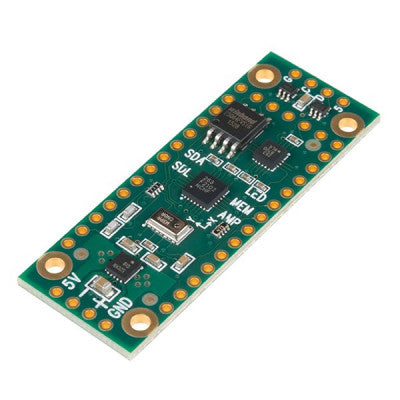

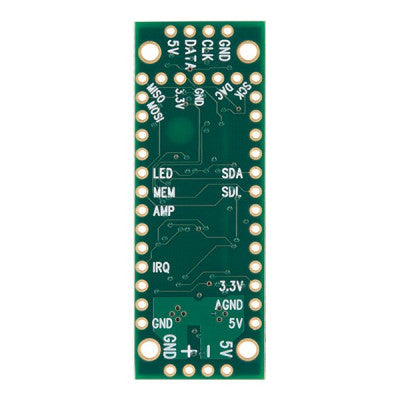

Package Includes: 1 x PJRC Prop Shield with Motion Sensor for Teensy 3.2 and Teensy-LC Development Board
* Images are for illustration only; actual product may vary.
