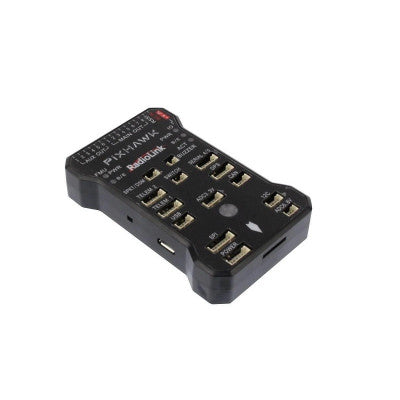

Pixhawk Flight Controller from RadioLink
Optimized PCB layout and barometer height hold for stable flight performance.
- Processor: 32bit STM32F427 Cortex M4 core with FPU
- RAM: 256KB
- Flash Memory: 2 MB
-
Sensor:
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro LSM303D 14 bit accelerometer/magnetometer
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5611 barometer
- Item Weight: 37.6g
- Item Dimension: 85 x 52 x 15mm
- Package Includes: 1 x Pixhawk Radiolink
- Frequency(Hz): 168
Top Features:
- Multiple flight modes for various activities
- Support for Helicopter, Fixed-wing, Multi-rotor, Model Car
- Abundant connectivity options for peripherals
- Advanced 32 bit CortexM4 ARM processor
This Pixhawk flight controller from RadioLink integrates the newest 32-bit chip technology and high-end sensors, making it one of the best flight controllers for quadcopters. It offers multiple flight modes including self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, and automatic modes. The controller also features a multi-sound buzzer interface and supports DSM Spektrum receiver.
Equipped with 14 PWM/servo outputs, 8 with failsafe and manual override, and 6 auxiliary outputs, this flight controller ensures high-power compatibility. It comes with a buzzer, 4G memory card, safety switch, and power module for added convenience. All interfaces are thoroughly tested and accurately detected by an automatic detection system to prevent installation issues.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
