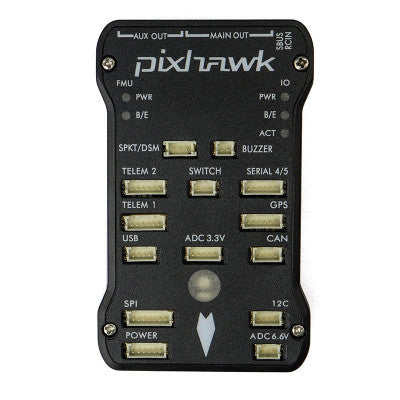

Pixhawk PX4 2.4.7 32Bits Flight Controller for Quadcopter Multicopter
New Version Redeveloped and optimized circuit with advanced features.
- Model: PX4 2.4.7
- Input Voltage (V): 6 ~ 10 V, 10A Max
- Firmware: MissionPlanner, ECLIPSE firmware upgrade
- Port: 5x UART (serial ports), One high-power capable, 2x with HW flow control, 2x CAN
-
Sensors:
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro 3CLDW 303H 14 bit accelerometer/magnetometer
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5611 barometer
- Processor: 32bit STM32F427 Cortex M4 core with FPU
- Micro-SD Card Slot: Yes
- Dimensions (mm): LxWxH 82 x 16 x 50
- Weight (gm): 39
Top Features:
- 168 MHz / 252 MIPS Cortex-M4F processor

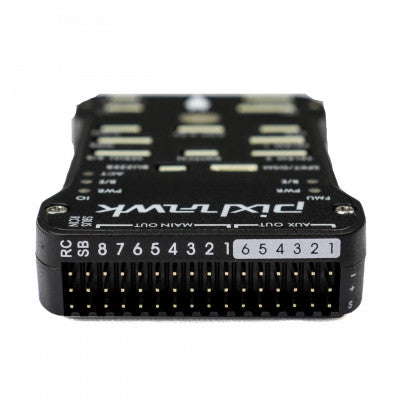

- 14 PWM / Servo outputs
- Abundant connectivity options for peripherals
- Integrated backup system for in-flight recovery
The Pixhawk PX4 2.4.7 Flight Controller integrates with PX4FMU+PX4IO, featuring a new 32-bit chip and sensor technology. It runs RTOS NuttX real-time operating system and provides redundant power input and fault transfer function. The controller offers various interfaces like UART, I2C, SPI, CAN, and supports automatic and manual modes.

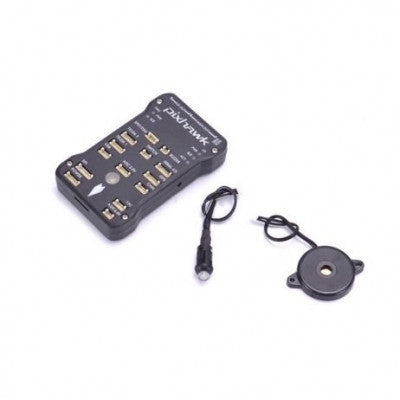

Package Includes:
- 1 x Pixhawk V2.4.7 Flight board with Original Shell
- 1 x Teflon safety switch

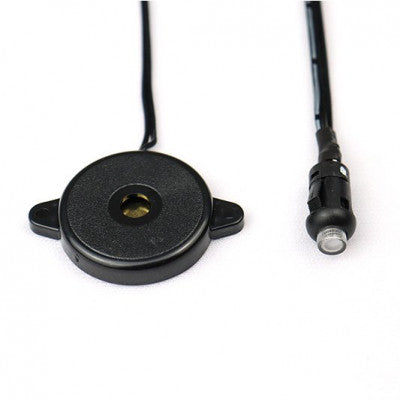

- 1 x Buzzer
* Images are for illustration only; actual product may vary.
