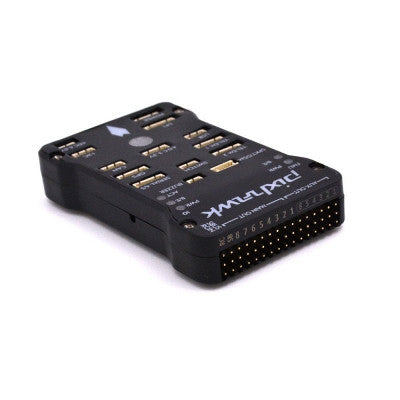

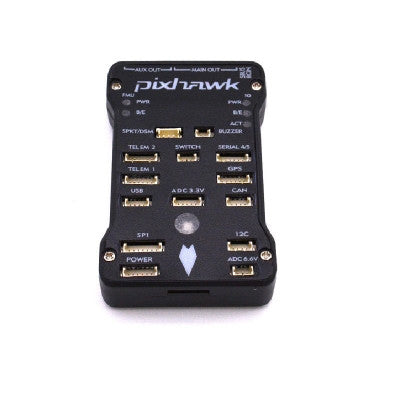

Pixhawk 2.4.8 32 Bit PX4 Autopilot Flight Controller
A high-performance flight controller for drone applications.
- Processor: 32bit STM32F427 Cortex M4 core with FPU
- Failsafe Co-processor: 32-bit STM32F103
- RAM: 128 KB
- Flash: 2 MB
Features:
- Advanced 32-bit ARM CortexM4 processors
- 14 PWM/servo outputs
- Bus interfaces (UART, I2C, SPI, CAN)
- Redundant power input and failover
The flight controller (aka FC) is the brain of the Drone (Quadcopter). It's a circuit board with sensors that detect movement and user commands to control motor speed. Pixhawk 2.4.8 supports 8 RC channels and 4 serial ports. It offers various user interfaces for programming and reviewing logs, including smartphone apps. The system provides automatic configuration of peripherals and offers Unix/Linux-like programming environment with new autopilot functions and mission scripting capabilities.

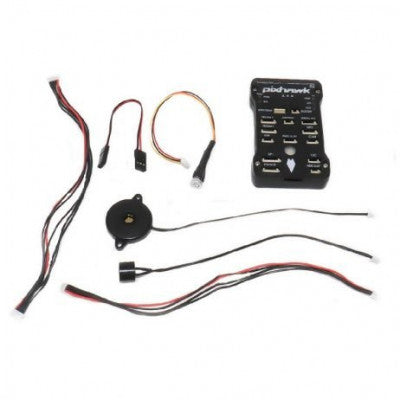

Package Includes:
- 1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller
- 3 x Connecting Cables

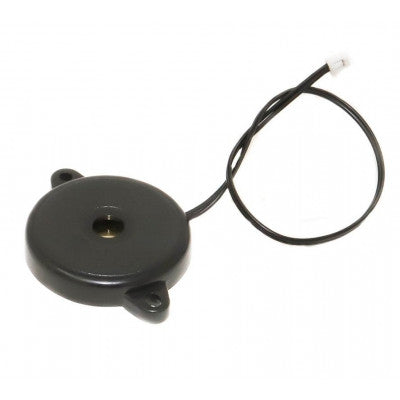

- 1 x Buzzer Module
Specifications:
- Input Voltage (V): 7V
- Firmware: Mission Planner
- Sensors: 3-Axis Gyrometer, Accelerometer, High-performance Barometer, Magnetometer
- Micro-SD Card Slot: Yes
- Dimensions (mm) LxWxH: 82 x 50 x 16
- Weight (gm): 40
