Passive Infrared Sensor (PIR) Module
A versatile sensor module for motion detection
- Color: White + Green OR White + Blue

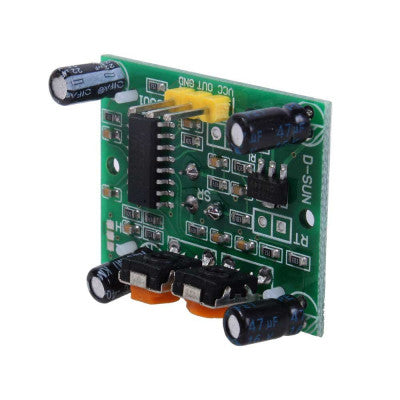

- Infrared Sensor: with Control Circuit Board
- Sensitivity and Holding Time: Adjustable
- Working Voltage Range: DC 4.5V-20V
- Current Drain: <60uA
- Detection Range: <140°
- Voltage Output: High/Low level Signal: 3.3V TTL output
- Detection Distance: 3 to 7m (adjustable)
- Delay Time: 5 to 200s (adjustable, Default 5s +/- 3%)
- Blockade Time: 2.5s (Default)
- Work Temperature: -20-+80°C
- Dimension: 3.2cm x 2.4cm x 1.8cm (Approx)

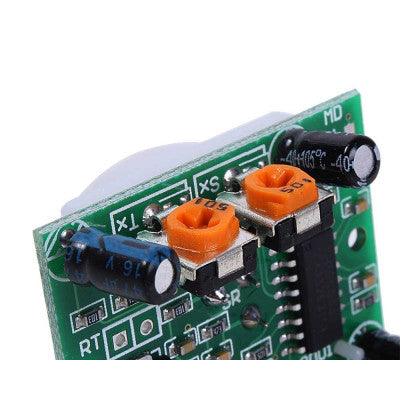

- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S)
Key Features:
- Adjustable Sensitivity and Holding Time
- Wide Working Voltage Range
- Adjustable Detection Distance and Delay Time
- Compact Dimension for Easy Installation

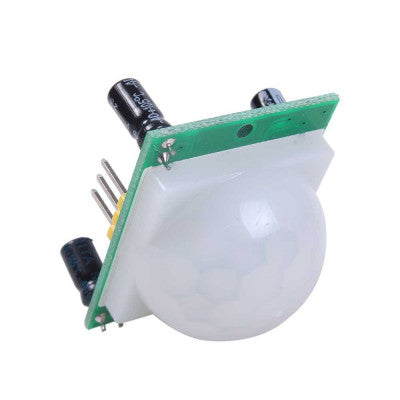

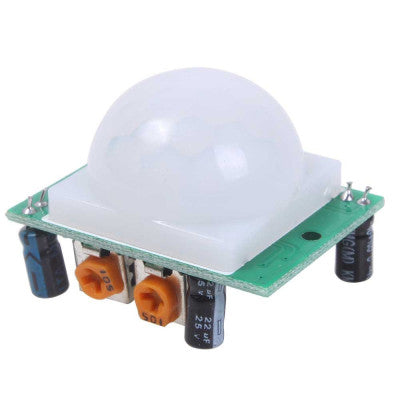

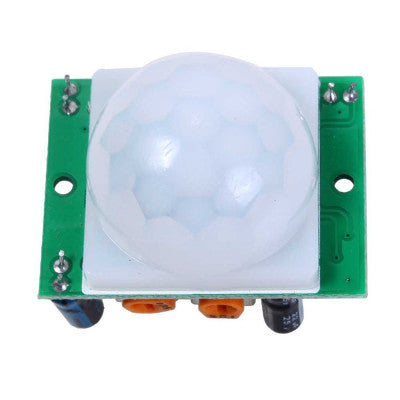

The Passive Infrared Sensor (PIR) sensor module is a versatile component used for motion detection. Commonly known as "PIR", "Pyroelectric", "Passive Infrared", and "IR Motion" sensor, it features an on-board pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. This module is ideal for sensing movement of people, animals, or other objects, making it suitable for applications such as burglar alarms and automatically-activated lighting systems.
