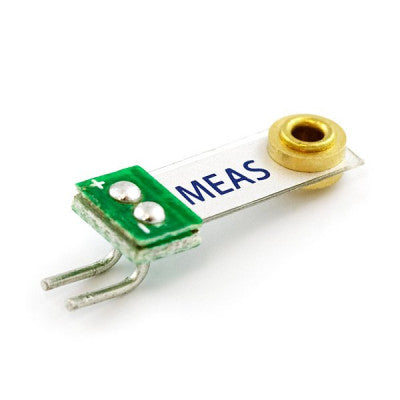

Piezo Vibration Sensor Small Vertical
A low-cost cantilever-type sensor with high sensitivity at low frequencies
- Voltage Sensitivity: 6 (open-circuit, at resonance)
- Charge Sensitivity: 260 pC/g
- Resonance Frequency: 75 Hz
- Upper Limiting Frequency (+3 dB): 42 Hz
- Linearity: 1%
- Dissipation Factor: 0.018
- Storage Temperature: -40°C to +80°C
- Operating Temperature: -20°C to +60°C
- Length: 18 mm
- Width: 7 mm
- Height: 6 mm
- Weight: 2 gm
Features:
- Flexible PVDF Piezo Polymer Film
- Wide dynamic range
- Laminated for higher voltage output
- Breadboard friendly leads
The Piezo Vibration Sensor Small Vertical from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and tap inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. It can also be used for impact sensing or a flexible switch.
It comes with solder pins that allow for vertical mounting.
Applications:
- Washing Machine Load Imbalance
- Vehicle Motion Sensor
- Anti-Theft Devices
- Vital Signs Monitoring
- Tamper Detection
- Impact Sensing
