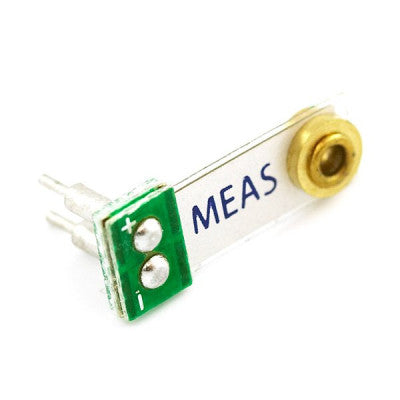

The Piezo Vibration Sensor Small Horizontal
A low-cost cantilever-type sensor with high sensitivity at low frequencies.
- Voltage Sensitivity: 6 (open-circuit, at resonance)
- Charge Sensitivity: 260 pC/g
- Resonance Frequency: 75 Hz
- Upper Limiting Frequency (+3 dB): 42 Hz
- Linearity: 1%
- Dissipation Factor: 0.018
- Storage Temperature: -40°C to +80°C
- Operating Temperature: -20°C to +60°C
- Length: 18 mm
- Width: 7 mm
- Height: 10 mm
- Weight: 2 gm
Features:
- Flexible PVDF Piezo Polymer Film
- Wide dynamic range
- Laminated for higher voltage output
- Breadboard friendly leads
The Piezo Vibration Sensor Small Horizontal is a versatile sensor suitable for various applications. It offers easy installation with machine pins for horizontal mounting. The shielded active sensor area enhances RFI/EMI rejection, making it reliable for critical operations.
With excellent linearity and dynamic range, this sensor can detect both continuous vibrations and impacts effectively. Its rugged PVDF sensing element can withstand high shock overloads, ensuring durability in demanding environments.
Common applications include Washing Machine Load Imbalance, Vehicle Motion Sensor, Anti-Theft Devices, Vital Signs Monitoring, Tamper Detection, and Impact Sensing. Additionally, it has been utilized as a musical input with great success.
Package Includes:
- 1 x Piezo Vibration Sensor Small Horizontal
* Images are for illustration only; actual product may vary.
