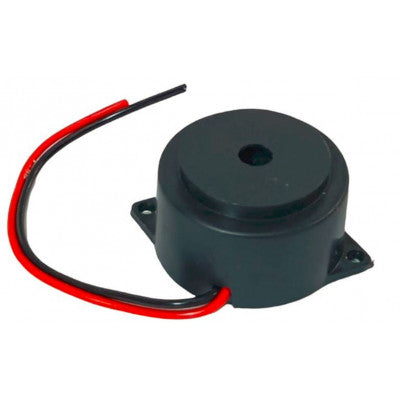

Piezo Buzzer
Compact integrated piezoelectric buzzer for versatile electronic applications
The buzzer is an electronic echo sounder with an integration structure. Powered by DC, it suits computers, printers, alarms, electronic toys, automotive equipment, telephones, timers, and more.
- Buzzer Type: Piezoelectric
- Rated Voltage: 12V DC
- Operating Voltage: 5~12V
- Current Rating: 20mA
- Sound Pressure Level: 95dB
- Frequency: 3900±500Hz
- Drive Method: Drive Circuit
- Storage Temp Range: -30~60°C
- Operating Temp Range: -20~50°C
- Package Includes: 1 x Piezo Buzzer
- Integrated piezoelectric design
- Operates on 5–12V DC
- High 95dB sound output
- Low 20mA current consumption
- Wide temp range: -20~60°C
- Easy to install and replace
