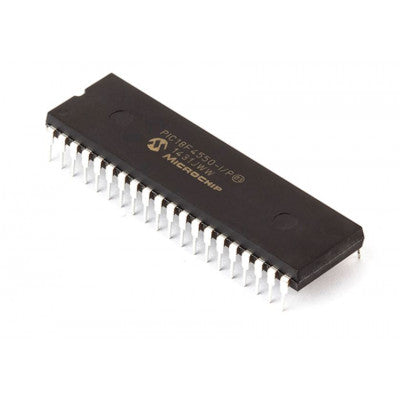

PIC18F4550 28/40/44-Pin USB Microcontroller
High-performance microcontroller with nanoWatt Technology
- Program Memory Type: Flash
- Program Memory Size (KB): 32
- CPU Speed (MIPS/DMIPS): 12
- SRAM (B): 2048
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 40
- Timers: 1x 8-bit, 3 x 16-bit
- ADC Input: 13 ch, 10-bit
- Capture/Compare/PWM Peripherals: 1 CCP, 1 ECCP
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C
- Data EEPROM/HEF (bytes): 256
Top Features:
- High-Current Sink/Source: 25 mA/25 mA
- Three External Interrupts
- Four Timer modules (Timer0 to Timer3)
- Up to 2 Capture/Compare/PWM (CCP) modules
The PIC18F4550 is a versatile microcontroller with enhanced features such as an Enhanced Capture/Compare/PWM module, Enhanced USART module with LIN bus support, and a Master Synchronous Serial Port (MSSP) module supporting various modes. It also includes a 10-bit, Up to 13-Channel Analog-to-Digital Converter (A/D) module for precise analog measurements.
The dual Analog Comparators with Input Multiplexing provide additional functionality for analog signal processing. With a wide operating voltage range and temperature range, this microcontroller is suitable for various applications.
