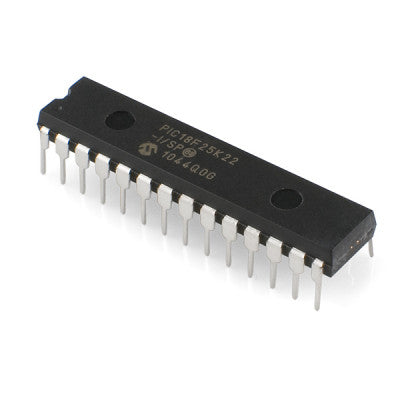

PIC18F25K22
Low-Power, High-Performance Microcontroller with XLP Technology
- Program Memory Type: Flash
- Program Memory Size (KB): 32
- CPU Speed (MIPS/DMIPS): 16
- SRAM (B): 1536
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 1.8 to 5.5
- Pin Count: 28
- Timers: 3 x 8-bit, 4 x 16-bit
- ADC Input: 17 ch, 10-bit
- Capture/Compare/PWM Peripherals: 2 Input Capture, 3 CCP
- Digital Communication Peripherals: 2-UART, 2-SPI, 2-I2C1-MSSP(SPI/I2C)
- Data EEPROM/HEF (bytes): 256
Top Features:
- 24/35 I/O pins with high current sink/source 25 mA/25 mA
- Programmable weak pull-ups and interrupt-on-pin change
- Up to seven Timer modules including dedicated Timer1 oscillator
- Two Master Synchronous Serial Port (MSSP) modules with SPI and I2C support
The PIC18F25K22 is a versatile microcontroller designed for low-power applications. With various peripheral options such as timers, ADC inputs, and communication interfaces, it offers high performance in a compact package. The flash program memory and ample SRAM make it suitable for a wide range of embedded applications.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.*
