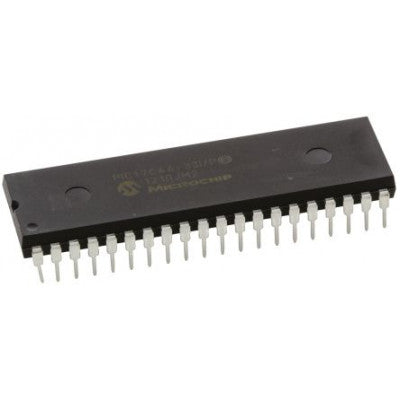

PIC17C44 High-Performance 8-Bit CMOS EPROM/ROM Microcontroller
High-performance microcontroller with versatile I/O and timer features.
- Program Memory Type: Flash
- Program Memory Size (KB): 8.25
- SRAM (B): 454
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 2 to 6
- Pin Count: 40
- Timers: 2 x 8-bit, 1 x 16-bit
Top Features:
- 33 I/O pins with individual direction control
- High current sink/source for direct LED drive
- Two capture inputs and two PWM outputs
- TMR0: 16-bit timer/counter with 8-bit programmable prescaler
The PIC17C44 is a high-performance 8-bit CMOS EPROM/ROM microcontroller with versatile I/O capabilities. It features 33 I/O pins with individual direction control, allowing for flexible connectivity. High current sink/source capabilities enable direct LED drive, with specific pins supporting open drain, high voltage, and high current I/O.
In addition, the microcontroller includes two capture inputs and two PWM outputs. The capture inputs offer a 16-bit resolution with a maximum resolution of 160 ns, while the PWM outputs provide a resolution range of 1 to 10 bits. The device is equipped with a 16-bit timer/counter (TMR0) with an 8-bit programmable prescaler and an 8-bit timer/counter (TMR1).
With a program memory size of 8.25 KB and 454 bytes of SRAM, the PIC17C44 operates within a temperature range of -40 to 85°C. It has an operating voltage range of 2 to 6V and a pin count of 40, making it suitable for a diverse range of applications.
For more detailed information, refer to the related document: PIC17C44 IC Data Sheet.
Images are for illustration only; actual product may vary.
