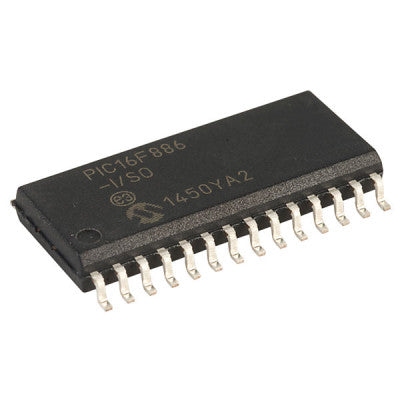

PIC16F886 Microcontroller
Powerful 8-bit microcontroller with advanced A/D applications capabilities
- Spec name: 256 bytes of EEPROM data memory
- Spec name: 35 single word instructions
- Spec name: Self programming
- Spec name: Features Microchip's powerful PIC® architecture
- Spec name: 28 pin package
- Spec name: 2 Comparators
- Spec name: 11 channels of 10-bit Analog-to-Digital (A/D) converter
- Spec name: 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions
- Spec name: Synchronous serial port configurable as either 3-wire SPI™ or 2-wire I²C™
- Spec name: Enhanced Universal Asynchronous Receiver Transmitter (EUSART)
Top Features:
- Power-Saving Sleep mode
- High-endurance Flash/EEPROM cell
- Power-on Reset (POR)
- Selectable Brown-out Reset (BOR) voltage
This CMOS FLASH-based microcontroller is perfect for advanced A/D applications in automotive, industrial, appliances, or consumer fields. It comes with a variety of features and specifications to support a wide range of functions.
Peripheral Features:
- Spec name: 1 input only pin
- Spec name: 25 I/O
- Spec name: High sink/source current 25 mA
- Spec name: Interrupt-on-pin change option
Timers:
- TMR0: 8-bit timer/counter with 8-bit prescaler
- TMR1 enhanced: 16-bit timer/counter with prescaler, External Gate Input mode
- TMR2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
The PIC16F886 Microcontroller also includes Analog features such as a 10-bit 11 channel Analog-to-Digital (A/D) Converter and 2 Analog Comparator modules. It offers a complete solution for your microcontroller needs.
*Images are for illustration only; actual product may vary.*
