PIC16F877A 18/20/28-Pin Enhanced Flash MCUs
Features:
- Capture, Compare, PWM (CCP) module: Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10-bit
- 10-bit, 7-channel Analog-to-Digital Converter
- Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C™ (Slave)
- Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART/SCI) with 9-bit address detection: RS-232 operation using internal oscillator (no external crystal required)
Specifications:
- Program Memory Type: Flash
- Program Memory Size (KB): 7
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 368
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 18
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 7 ch, 10-bit
- Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
- Data EEPROM/HEF (bytes): 256
Related Document: PIC16F88 IC Data Sheet
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416

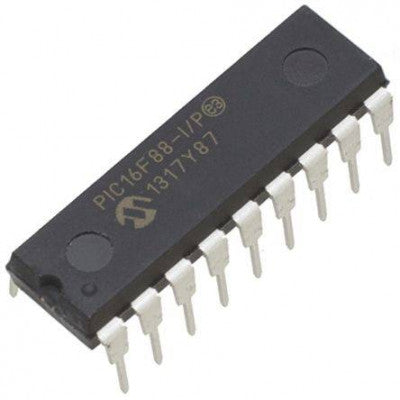

Images are for illustration only; actual product may vary.
