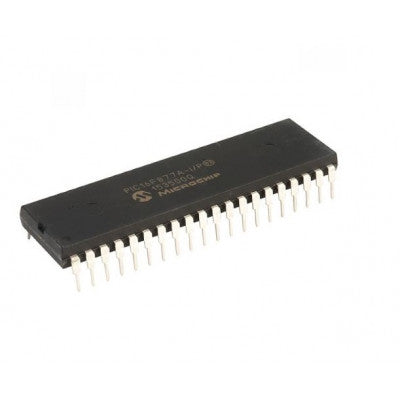

PIC16F877A 28/40/44-Pin Enhanced Flash Microcontroller
Features:
- Timer0: 8-bit timer/counter with 8-bit prescaler
- Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
- Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
-
Two Capture, Compare, PWM modules:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
- Synchronous Serial Port (SSP): SPI (Master mode) and I2C™ (Master/Slave)
- Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI): with 9-bit address detection
- Parallel Slave Port (PSP): 8 bits wide with external RD, WR and CS controls (40/44-pin only)
- Brown-out detection circuitry: for Brown-out Reset (BOR)
- Program Memory Type: Flash
- Program Memory Size (KB): 14
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 368
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 40
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 8 ch, 10-bit
- Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
- Data EEPROM/HEF (bytes): 256
Related Document: PIC16F877A IC Data Sheet
