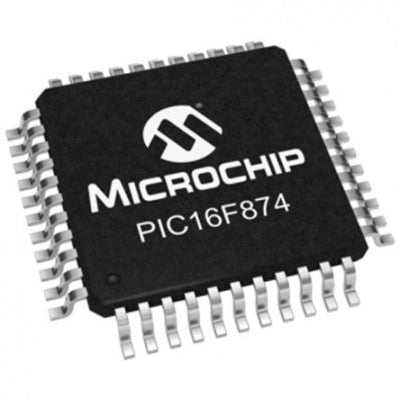

PIC16F874 Microcontroller SMD Package
Microchip Mid-Range core microcontroller with 5 MIPS and 3.5 Kbytes program memory
- Maximum Operating Temperature: +85 °C
- ADC Resolution: 10bit
- Pulse Width Modulation: 2 (CCP)
- Number of ADC Units: 1
- Number of UART Channels: 1
- Instruction Set Architecture: RISC
- ADCs: 1(8 x 10 bit)
- Package Type: TQFP
- Mounting Type: Surface Mount
- Data Bus Width: 8bit
- Number of PCI Channels: 0
Top Features:
- 8 level deep hardware stack
- 35 instructions
- EEPROM of 64 bytes
- 128 bytes RAM
The PIC16F874 family of microcontrollers, with a PIC core, offers a versatile solution for various electronic applications. With Flash program memory, this microcontroller provides efficiency and flexibility in firmware development and updates. Ideal for projects requiring a compact footprint, the PIC16F874 comes in a TQFP package type suitable for surface mounting.
Equipped with 8 ADC channels and 10-bit resolution, this microcontroller enables precise analog-to-digital conversions. The integrated Pulse Width Modulation (PWM) module with 2 CCP units allows for accurate control of pulse signals. With 1 UART and 1 I2C channel, the PIC16F874 facilitates serial communication for seamless connectivity.
- Width: 10.1mm
- Height: 2.1mm
- Dimensions: 10.1 x 10.1 x 2.1mm
- Timer Resolution: 8 bit, 16 bit
- Program Memory Type: Flash
- Program Memory Size: 128 B
- Length: 10.1mm
The PIC16F874 operates within a wide voltage range of 2 to 5.5 V, making it suitable for low-power applications. With a maximum frequency of 20MHz, this microcontroller delivers efficient performance for various embedded systems. The device core is based on the reliable PIC architecture, ensuring consistent and dependable operation.
- Device Core: PIC
- Brand: Microchip
- ADC Channels: 8
- Minimum Operating Temperature: -40 °C
- Family Name: PIC16F
- USB Channels: 0
- RAM Size: 192 B
Ensure seamless integration and reliable performance in your electronic designs with the PIC16F874 microcontroller. Explore its versatile features and capabilities for your next project.
*Images are for illustration only; actual product may vary.
