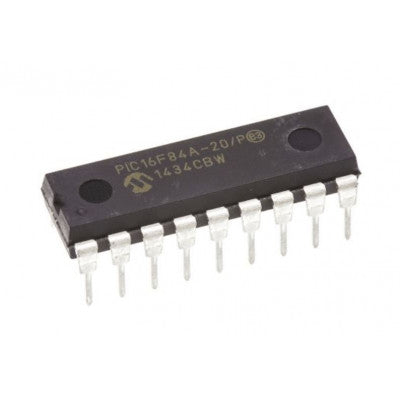

PIC16F84A 18-Pin Microcontroller
Enhanced FLASH/EEPROM 8-Bit Microcontroller with 13 I/O Pins
- Program Memory Type: Flash
- Program Memory Size (KB): 1.75
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 68
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 6
- Pin Count: 18
- Timers: 1 x 8-bit
- Data EEPROM/HEF (bytes): 64
Top Features:
- 13 I/O pins with individual direction control
- High current sink/source for direct LED drive
- TMR0: 8-bit timer/counter with 8-bit programmable prescaler
The PIC16F84A is a versatile 18-pin microcontroller with enhanced FLASH/EEPROM capabilities. It features 13 I/O pins with individual direction control, making it ideal for various applications. Additionally, it offers high current sink/source for direct LED drive, with a maximum of 25mA sink/source per pin.
With a program memory size of 1.75KB and a CPU speed of 5 MIPS/DMIPS, this microcontroller provides efficient performance. It operates in a temperature range of -40 to 125°C and has an operating voltage range of 2 to 6V, suitable for a wide range of environments.
Equipped with 1 x 8-bit timer and 64 bytes of Data EEPROM/HEF, the PIC16F84A is a reliable choice for your microcontroller projects. For more detailed information, refer to the PIC16F84A IC Data Sheet.
*Images are for illustration only; actual product may vary.
