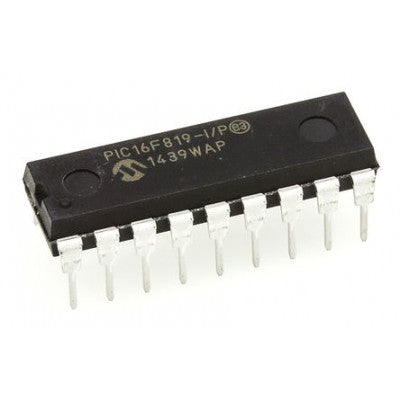

PIC16F819 18/20-Pin Enhanced Flash Microcontrollers
Featuring nano Watt Technology and various powerful capabilities
- Program Memory Type: Flash
- Program Memory Size (KB): 3.5
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 256
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 18
- Timers: 2 x 8-bit, 1 x 16-bit
Top Features:
- 16 I/O pins with individual direction control
- High sink/source current: 25 mA
- 10-bit, 5-channel Analog-to-Digital converter
- Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C(TM) (Slave)
The PIC16F819 is a powerful microcontroller with capabilities like Timer0, Timer1, and Timer2 for efficient timekeeping and management. It also features a capture, compare, PWM (CCP) module for precise control. With 10-bit analog-to-digital conversion and a range of digital communication peripherals, this microcontroller is ideal for various applications.
Specification:
- Program Memory Type: Flash
- Program Memory Size (KB): 3.5
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 256
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 18
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 5 ch, 10-bit
- Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP
- Digital Communication Peripherals: 1-SPI, 1-I2C1-SSP(SPI/I2C)
- Data EEPROM/HEF (bytes): 256
Related Document: PIC16F819 IC Data Sheet
Images are for illustration only; actual product may vary.
