PIC16F818 18/20-Pin Enhanced Flash Microcontrollers
Features nano Watt Technology, 16 I/O pins, and 10-bit ADC
- Program Memory Type: Flash
- Program Memory Size (KB): 1.75
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 128
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 18
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 5 ch, 10-bit
- Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP
- Digital Communication Peripherals: 1-SSP(SPI/I2C)
- Data EEPROM/HEF (bytes): 128
Top Features:
- High sink/source current: 25 mA
- Timer0: 8-bit timer/counter with 8-bit prescaler
- 16 I/O pins with individual direction control
- 10-bit, 5-channel Analog-to-Digital converter
The PIC16F818 is an 18/20-Pin Enhanced Flash Microcontroller featuring nano Watt Technology. It offers 16 I/O pins with individual direction control and high sink/source current of 25 mA. The microcontroller includes various timers such as Timer0, Timer1, and Timer2 for different functionalities.
Moreover, it comes with a Capture, Compare, PWM (CCP) module that provides high resolutions for capture, compare, and PWM functions. Additionally, it includes a 10-bit, 5-channel Analog-to-Digital converter and a Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C™ (Slave) support.
The PIC16F818 operates in a wide temperature range from -40 to 125°C and supports an operating voltage range from 2 to 5.5V. With a compact pin count of 18, this microcontroller is suitable for various embedded applications requiring accurate timing and analog-to-digital conversion.
For more detailed information, please refer to the PIC16F818 IC Data Sheet.

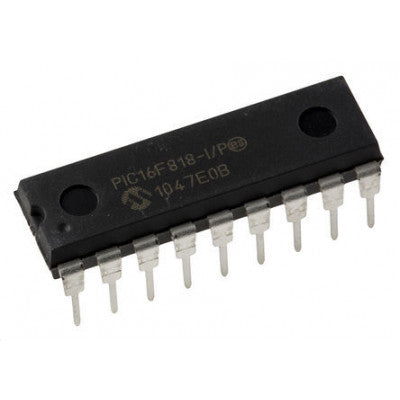

* Images are for illustration only; actual product may vary.
