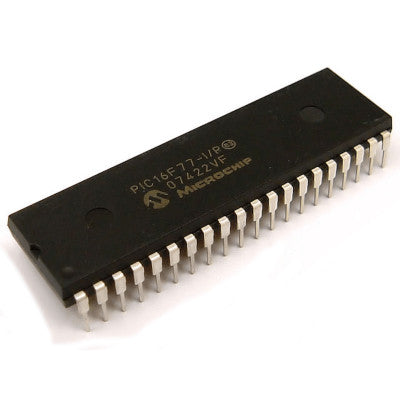

PIC16F77 28/40-Pin 8-Bit CMOS FLASH Microcontroller
Powerful microcontroller with versatile timer and communication modules
- Program Memory Type: Flash
- Program Memory Size (KB): 14
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 368
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 40
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 8 ch, 8-bit
- Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C, 1-SSP(SPI/I2C)
Top Features:
- Timer0: 8-bit timer/counter with 8-bit prescaler
- 16-bit Timer1 with prescaler and external clock increment
- 8-bit Timer2 with period register, prescaler, and postscaler
- 8-bit, 5-channel analog-to-digital converter
The PIC16F77 is a versatile 8-bit microcontroller with advanced timer modules like Timer0, Timer1, and Timer2. It also features a robust analog-to-digital converter and digital communication peripherals for seamless interfacing.
The Capture, Compare, PWM (CCP) module provides precise control with high resolutions for capture, compare, and PWM functions. Additionally, the synchronous serial port (SSP) supports SPI and I2C communication protocols.
The built-in brown-out detection circuitry ensures reliable operation by triggering a Brown-out Reset (BOR) when needed.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
