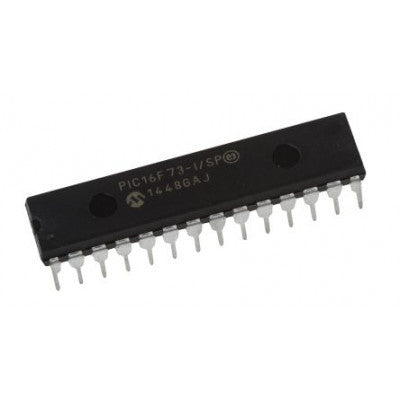

PIC16F73 28/40-Pin 8-Bit CMOS FLASH Microcontroller
Features:
- Timer0: 8-bit timer/counter with 8-bit prescaler
- Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
- Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
-
Capture, Compare, PWM (CCP) module:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
- 8-bit, 5-channel analog-to-digital converter
- Synchronous Serial Port (SSP): SPI™ (Master/Slave) and I2C™ (Slave)
- Brown-out detection circuitry for Brown-out Reset (BOR)
- Spec name: Value
- Program Memory Type: Flash
- Program Memory Size (KB): 7
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 192
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 28
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 5 ch, 8-bit
- Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)
Related Document: PIC16F73 IC Data Sheet
